LED Downlight

LED Downlight Products

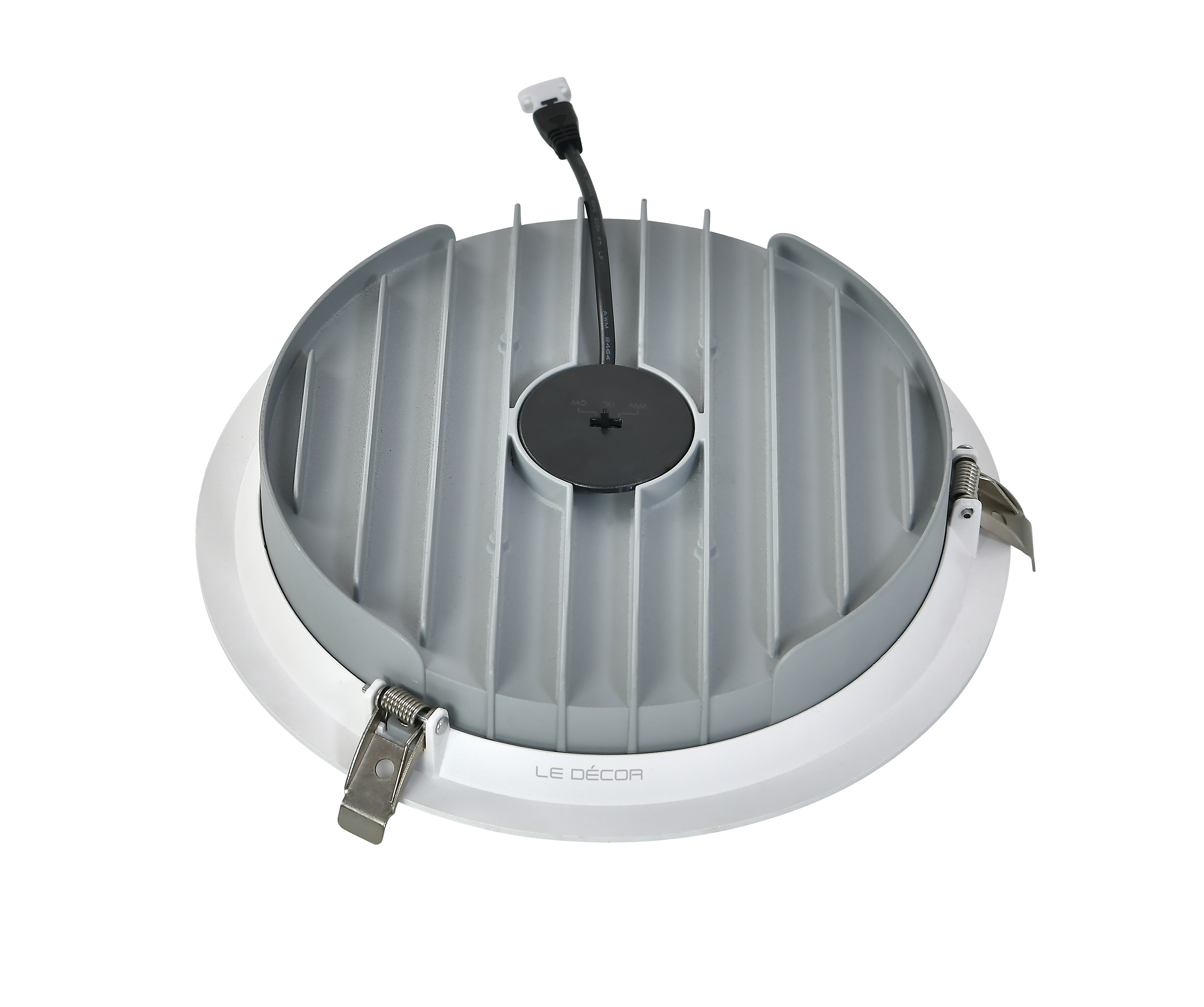

Adopting high lumen EPISTAR COB LED with uniform light
High luminous efficiency
Non-dimmable, Triac dimmable, 0-10V and Dali dimmable drivers
From 3 inch to 8 inch sizes are available

Light Source:	EPISTAR COB LED chip
Power:	7W/12W/15W/20W/30W
Lumen Efficacy:	80-100lm/W
CCT:	2700K/4000K/5000K/6500K
Input Voltage:	AC220-240V
Beam Angle:	60°
Material:	Die-cast aluminium+ PC
Finishing Color:	White and Black
Driver:	LIFUD
IP Rating:	IP40
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

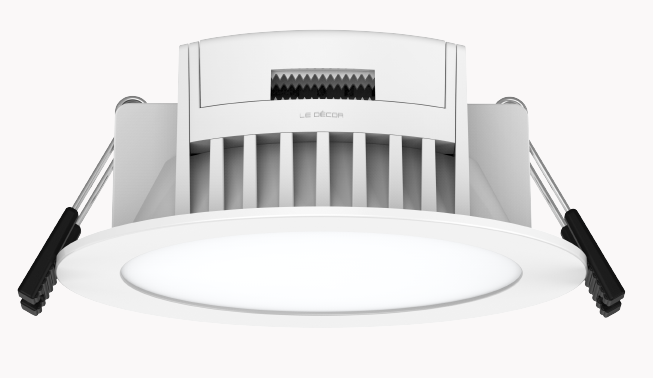

LED Downlight

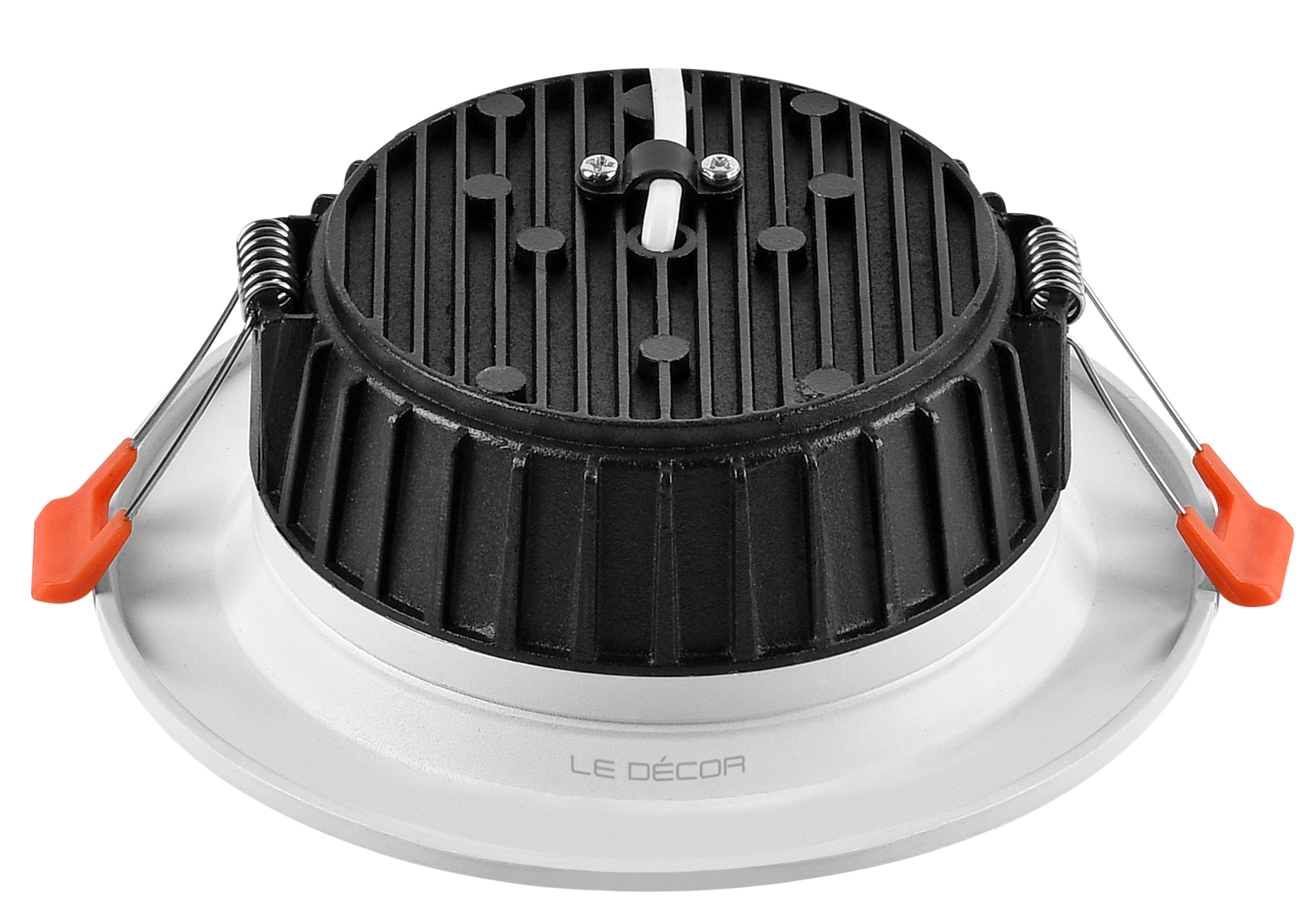

Adopting high lumen SMD led with uniform light
High luminous efficiency
Interchangeable CCT with slide switch
IP20, IP54, IP65 optional
CRI>90 for a more real lighting effect

Light Source:	EPISTAR SMD2835 LED chip
Power:	10W/15W/25W/36W
Lumen Efficacy:	120lm/W
CCT:	2700K/4000K/5000K/6500K
Input Voltage:	AC200-240V
Beam Angle:	120°
Material:	Die-cast aluminium+ PC
Finishing Color:	White
Driver:	LIFUD
IP Rating:	IP20/IP54/IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

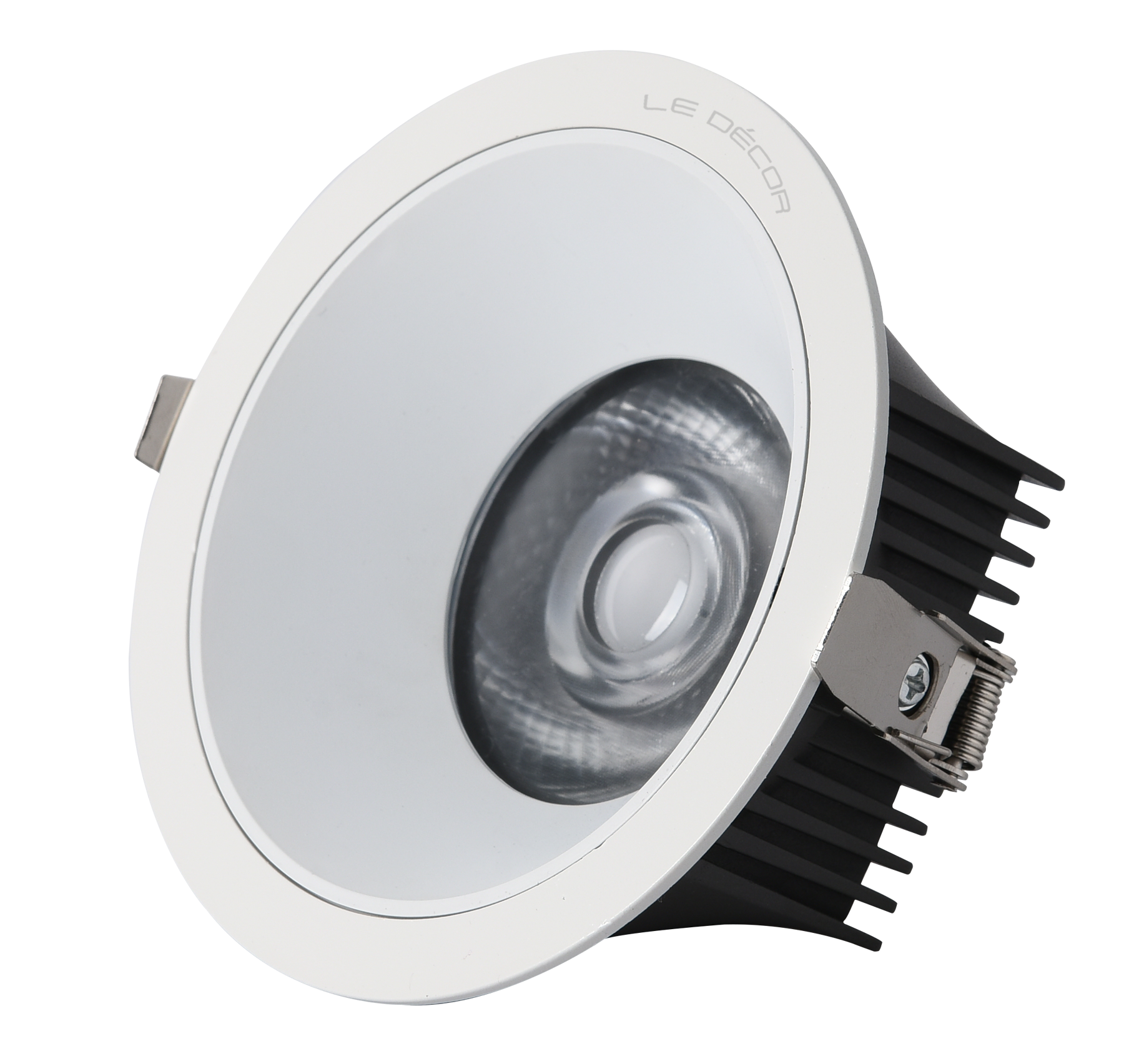

High quality aluminium housing with Excellent heat dissipation
Simple design with narrow trim
Adopting high lumen SMD led with uniform light
2 kinds of reflectors as option

Light Source:	SMD2835 LED chip
Power:	7W/10W/12W/15W/20W
Lumen Efficacy:	100-120lm/W
CCT:	2700K/4000K/5000K/6500K
Input Voltage:	AC220-240V
Beam Angle:	80°
Material:	Aluminium
Finishing Color:	White
Driver:	Standard/Dimmable
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

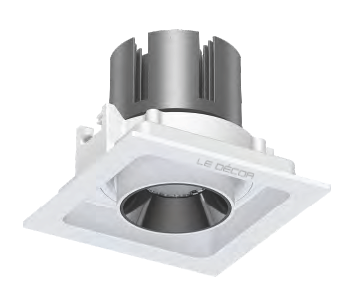

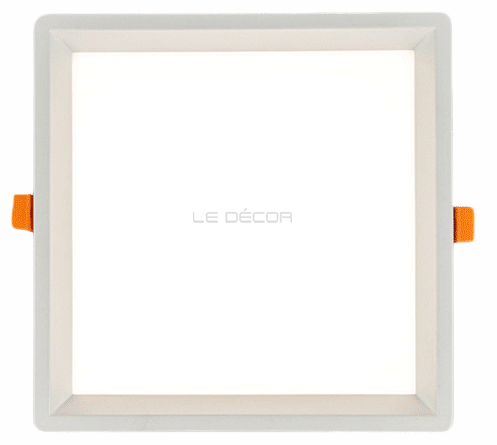

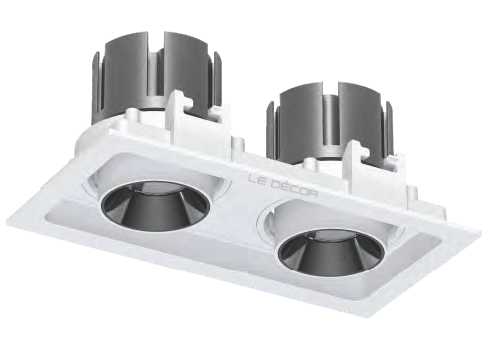

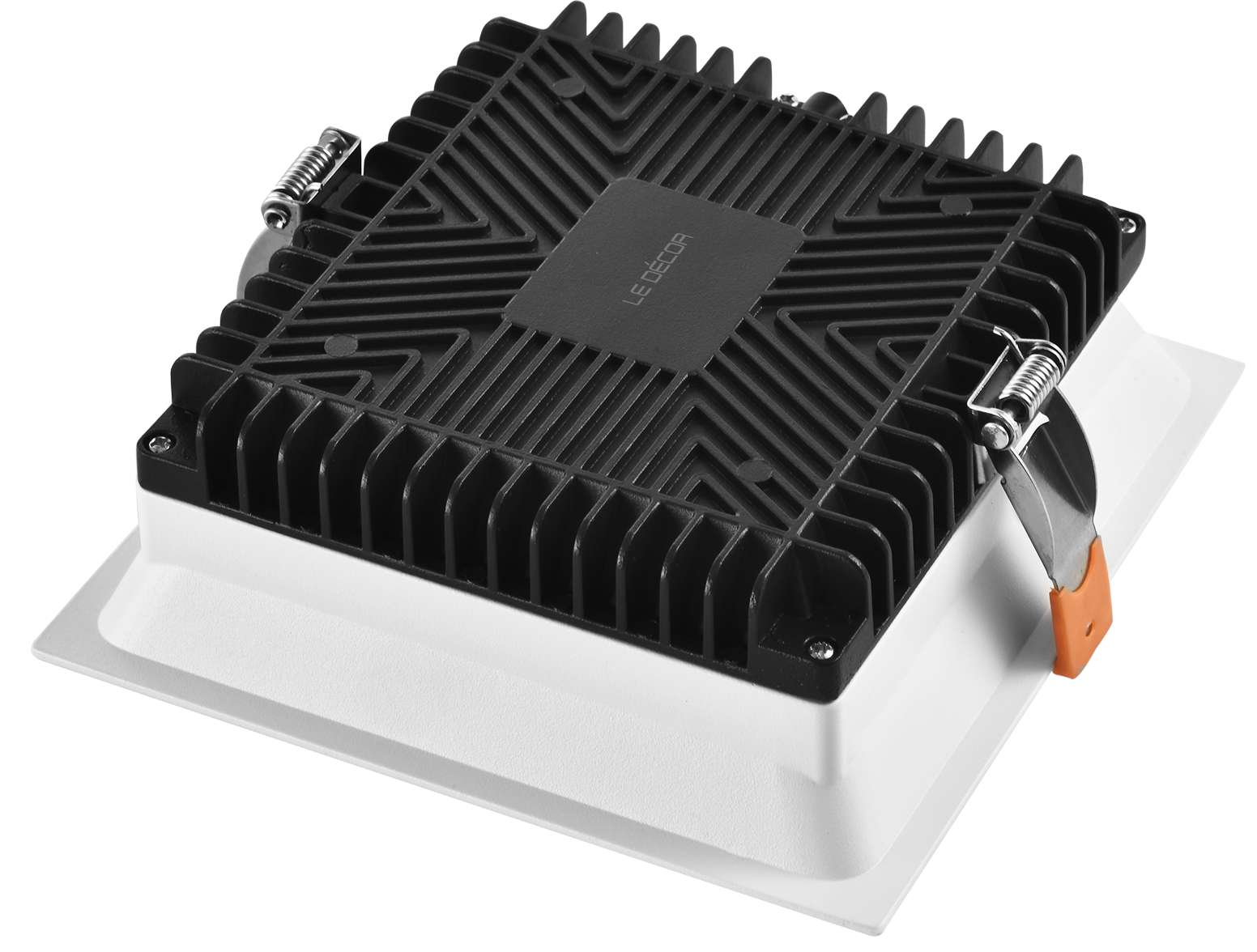

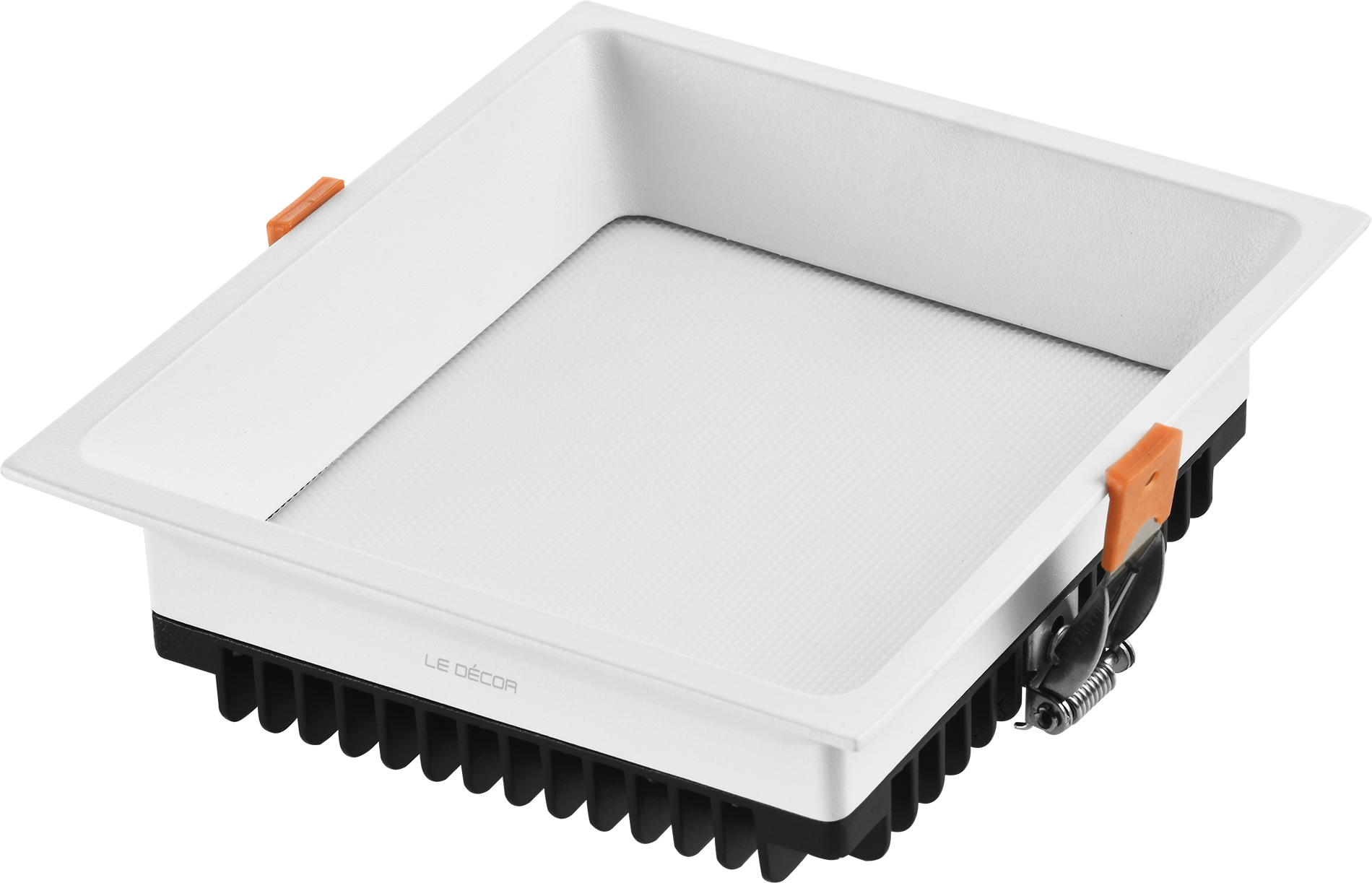

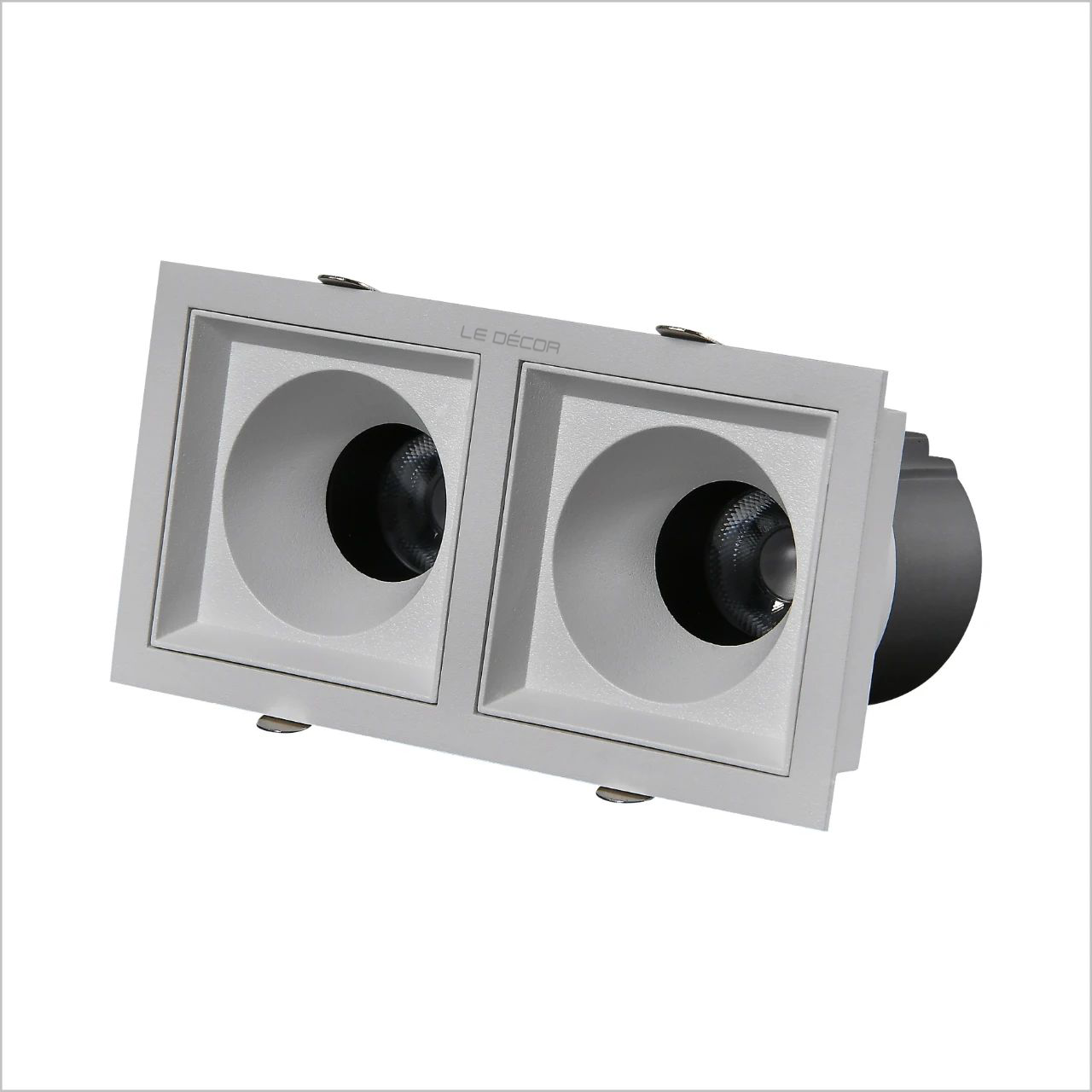

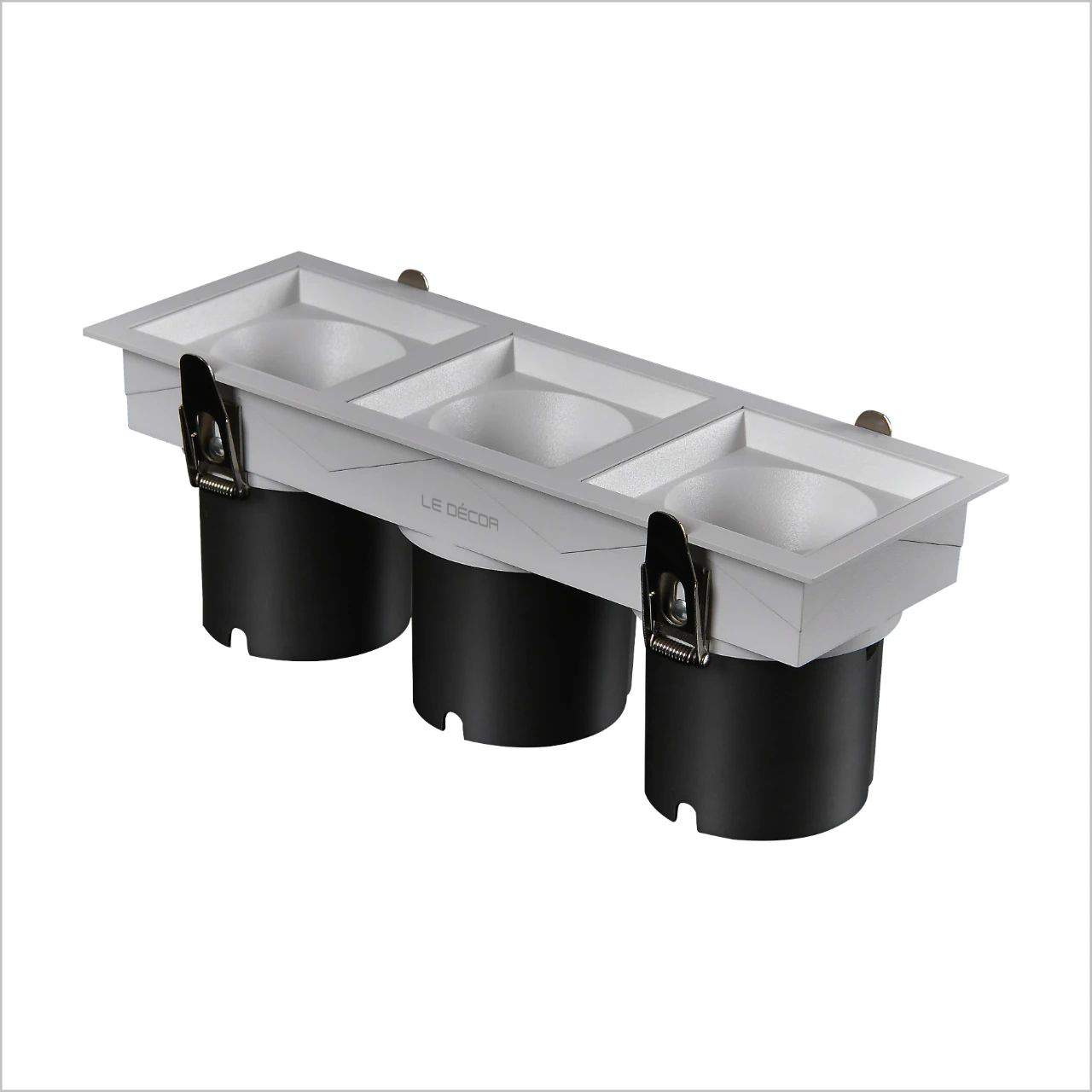

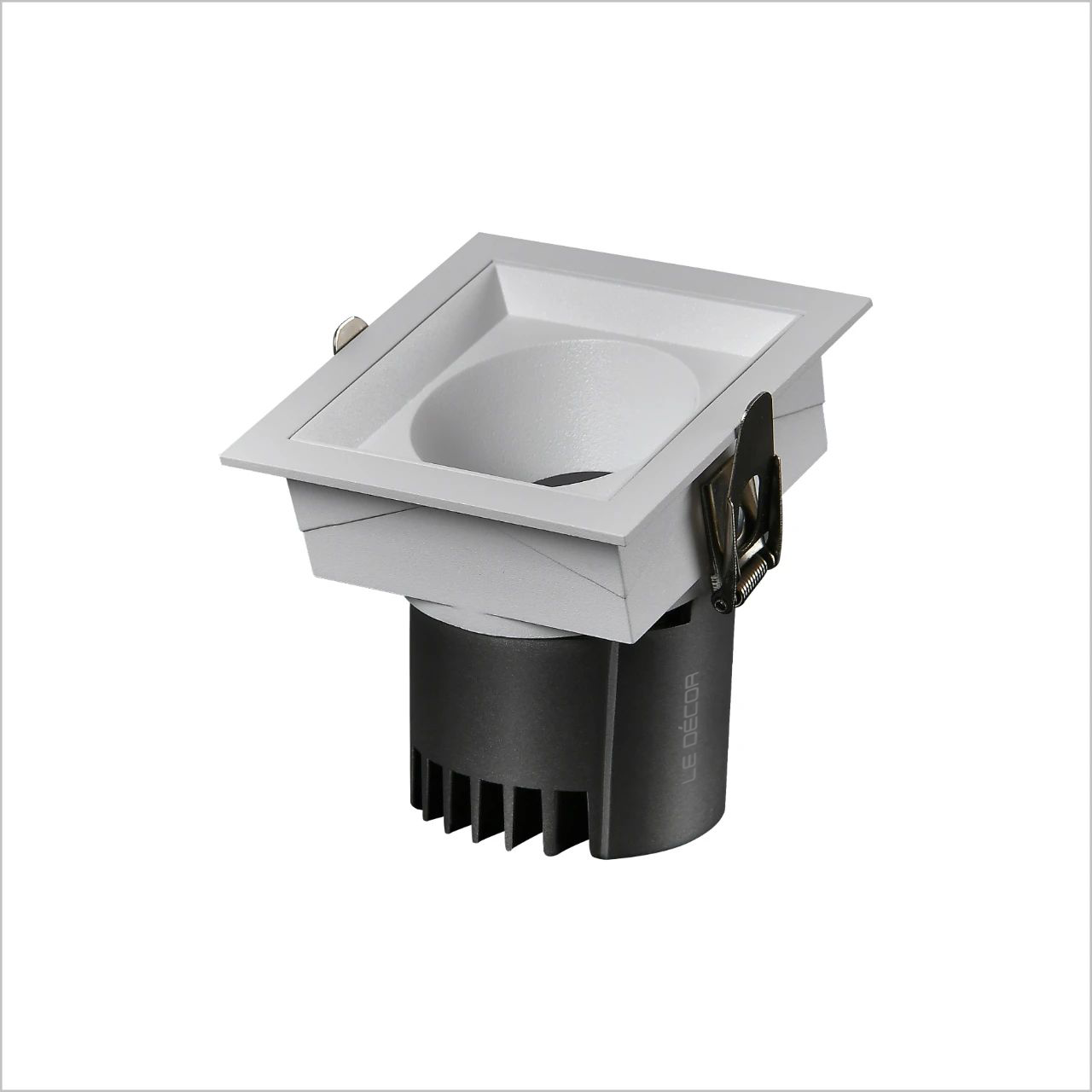

LED Downlight

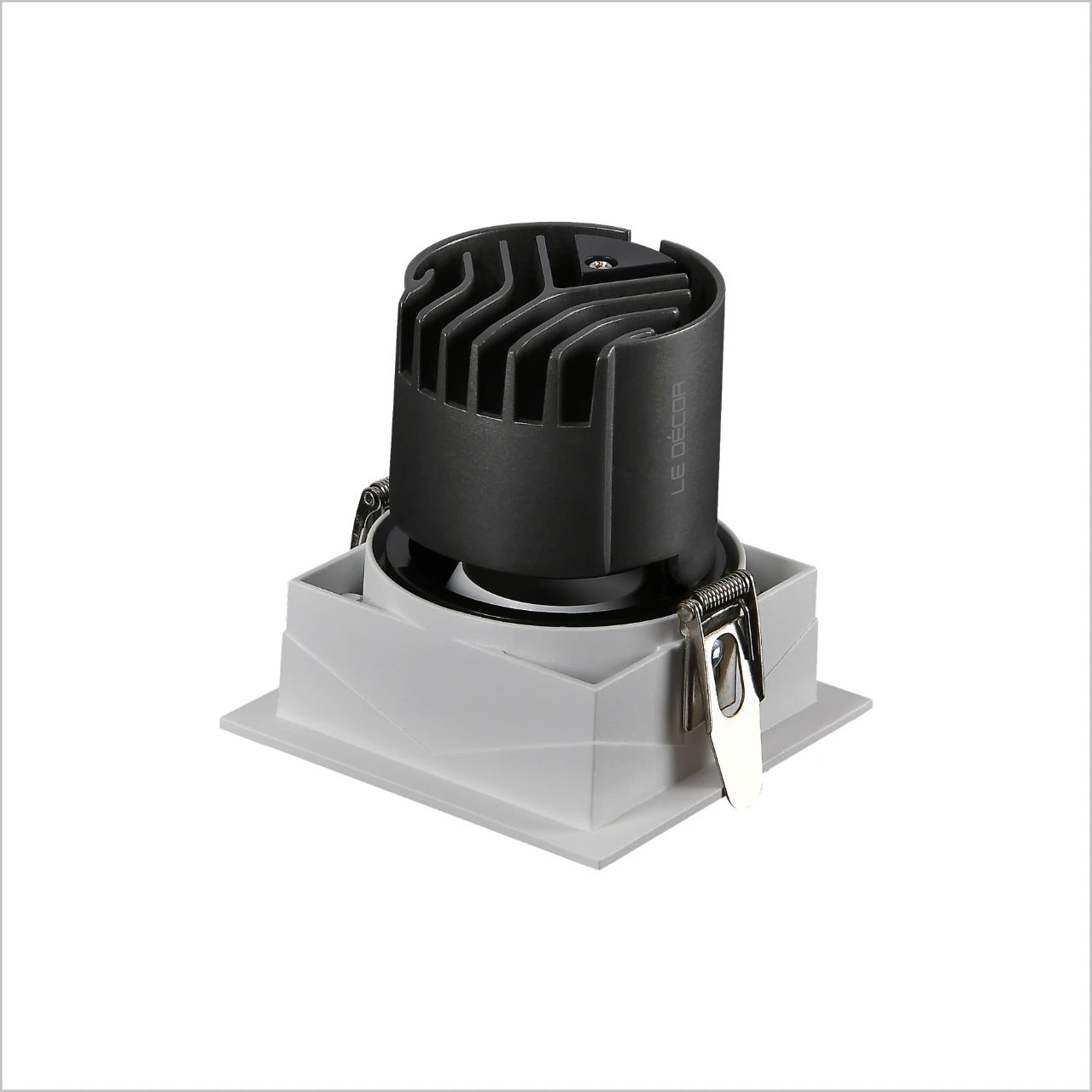

Square style, UGR<10,Deep trim design provides soft lighting
Non-dazzling, high CRI, Ra>90
Multiple lighting angles, 50,000 hours life span
Diming options: TRIAC, 0-10V dimming, DALI dimming

Light Source:	Citizen COB LED chip
Power:	7W/12W/20W/30W/2x7W/2x12W/2x20W/2x30W
Lumen Efficacy:	80-100lm/W
CCT:	2700K/4000K/5000K/6500K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,36°
Material:	Die-cast aluminium+ PC
Finishing Color:	White
Driver:	Standard/Dimmable
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

Classic cylindrical design
Surface mounted
COB/SMD LEDs optional
3 kinds Beam angle

Light Source:	Citizen COB LED chip
Power:	12W/20W/30W
Lumen Efficacy:	80-100lm/W
CCT:	2700K/4000K/5000K/6500K
Input Voltage:	AC220-240V
Beam Angle:	20°/40°
Material:	Die-cast aluminium+ PC
Finishing Color:	White
Driver:	Standard/Dimmable
IP Rating:	IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

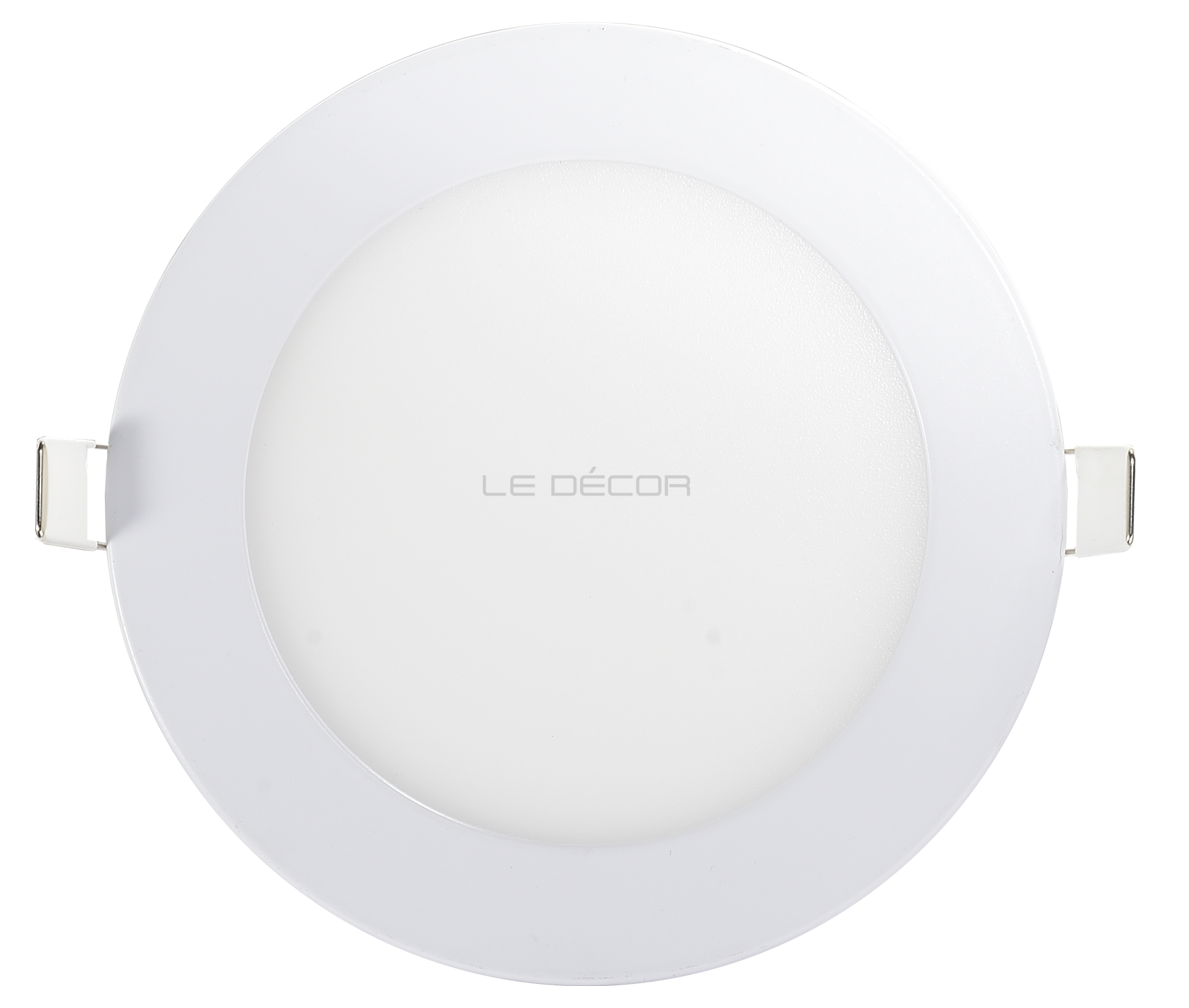

Adopting high lumen SMD led with uniform light
High luminous efficiency
Excellent heat dissipation
IP44 waterproof, IP20 optional
CRI>90 for a more real lighting effect

Light Source:	SMD2835 LED chip
Power:	5W/9W/12W/18w
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	120°
Material:	Aluminium
Finishing Color:	White
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

High quality aluminium housing
Adopting high lumen COB led
IP44 waterproof,IP20 optional
High lumen light efficacy of 100lm/w
Excellent heat dissipation

Light Source:	COB LED chip
Power:	10W/15W/25W/40W
Lumen Efficacy:	100lm/W
CCT:	3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

Adopting high lumen COB led with uniform light
High luminous efficiency
IP44 waterproof, IP20 optional
60° beam angle
Environment friendly, without Mercury or any other hazardous substances

Light Source:	COB LED chip
Power:	7W/15W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC85-265V
Beam Angle:	60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

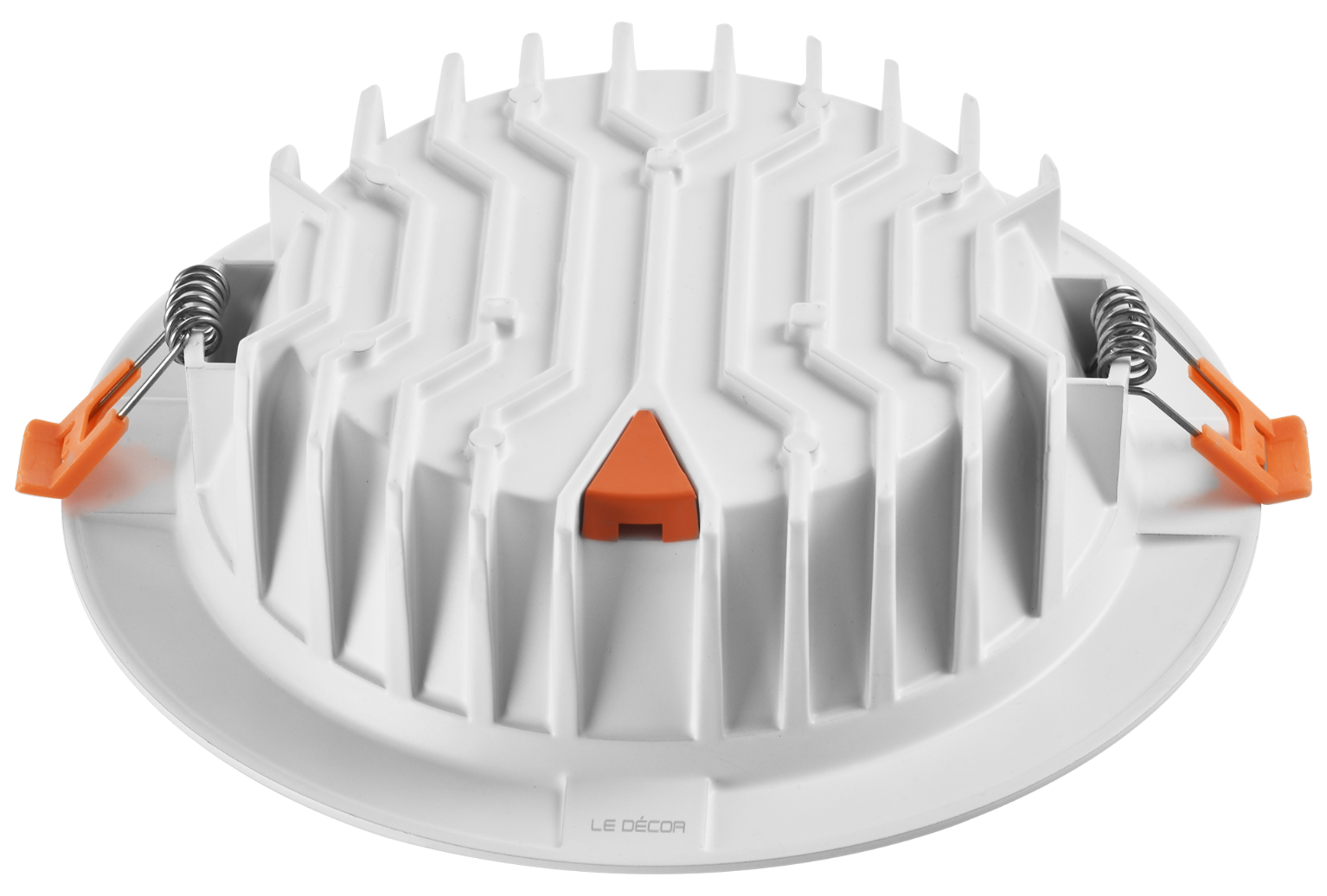

LED Downlight

High quality aluminium housing
IP44 waterproof, IP20 optional
High lumen light efficacy of 90-110 lm/w
Excellent heat dissipation
CCT switchable available

Light Source:	SMD2835 LED chip
Power:	12W/18W/24W/36W
Lumen Efficacy:	90-110lm/W
CCT:	3000K/4000K/6000K/C3
Input Voltage:	AC220-240V
Beam Angle:	90°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

High quality aluminium housing
IP44 waterproof, IP20 optional
High lumen light efficacy of 90-110lm/w
Excellent heat dissipation
CCT switchable available

Light Source:	SMD2835 LED chip
Power:	12W/18W/24W/36W
Lumen Efficacy:	90-110lm/W
CCT:	3000K/4000K/6000K/C3
Input Voltage:	AC220-240V
Beam Angle:	90°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

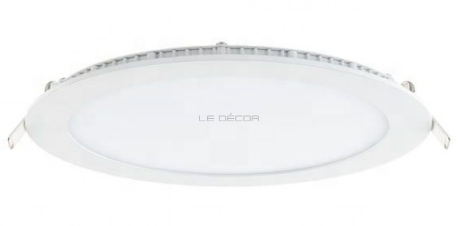

LED Downlight

Slim design, suitable for narrow ceiling
Adopts SMD LED, ensure the uniform lighting output
Aluminium housing
90° Beam angle
Environment friendly, without Mercury or any other hazardous substances

Light Source:	SMD2835 LED chip
Power:	5W/7W/9W/12W/18W/24W/30W
Lumen Efficacy:	70-90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	90°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

High quality aluminium housing
IP44 waterproof, IP20 optional
High lumen light efficacy of 90-110lm/w
Excellent heat dissipation

Light Source:	SMD2835 LED chip
Power:	7W/12W/18W/24W/30W/40W/48W
Lumen Efficacy:	90-110lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

Adopting high lumen SMD led with uniform light
High luminous efficiency
IP44 waterproof, IP20 optional
Excellent heat dissipation
Excellent visual comfort

Light Source:	SMD2835 LED chip
Power:	7W/10W/15W/30W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	60°,90°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

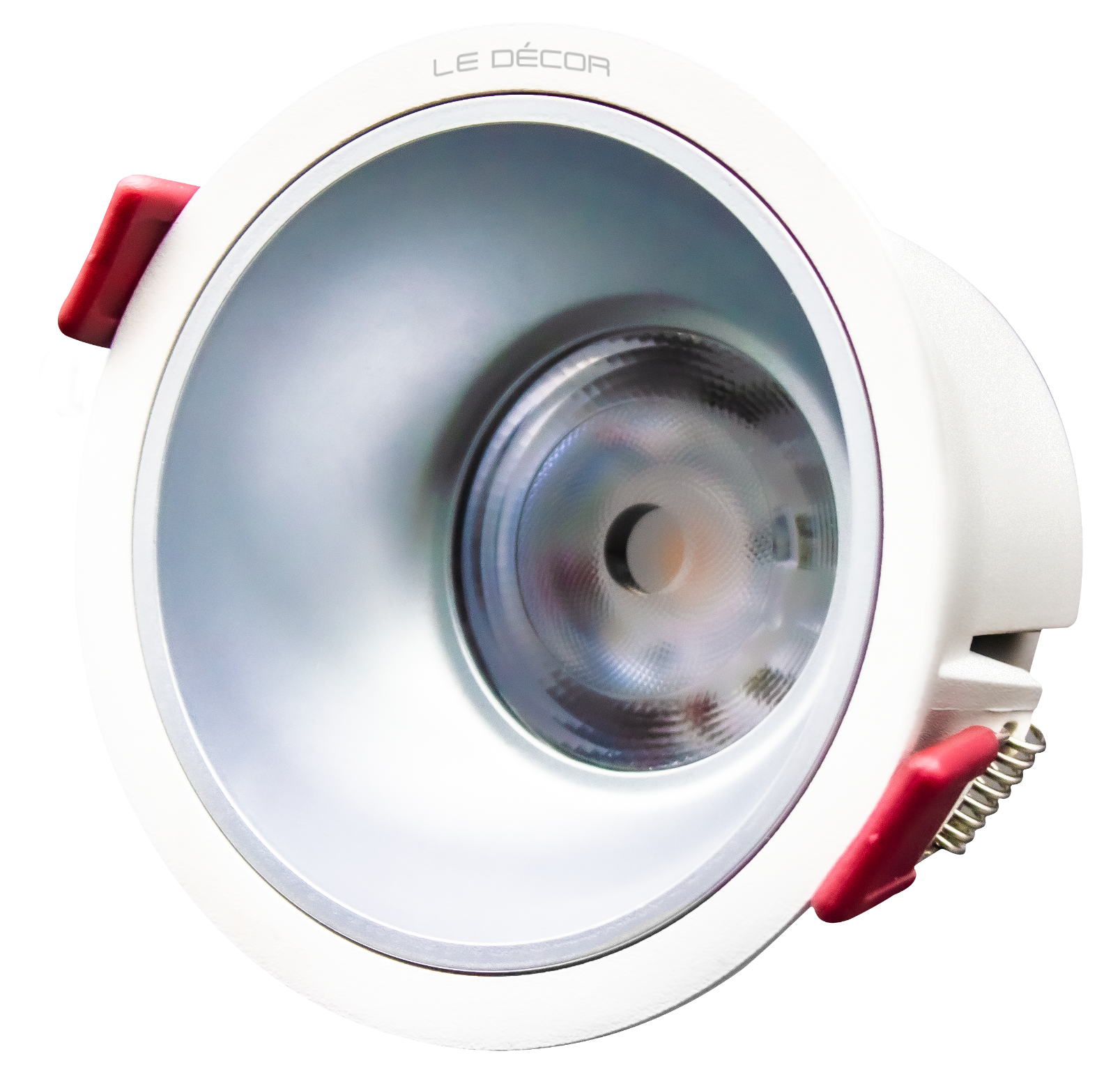

LED Downlight

High quality aluminium housing, good heat dissipation performance, safer and prevent deformation
Optional beam angles
Deep reflector
External flicker-free driver

Light Source:	Bridgelux LED chip
Power:	7W/10W/15W/20W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

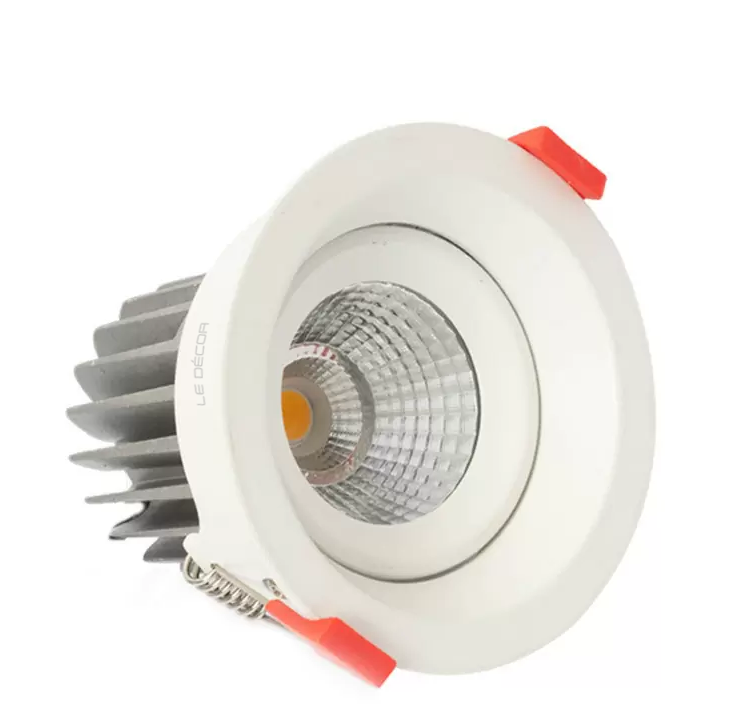

LED Downlight

Die-cast aluminium housing, powerful radiator or effective heat dissipation
Optional beam angles
Built-in high quality COB chip, no flicker
Up to 50,000hrs lifespan

Light Source:	Bridgelux LED chip
Power:	5W/7W/10W/12W/20W/25W/30W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	8°,15°,24°,38°,55°
Material:	Die-cast aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

Material: Die-cast aluminium
Optional beam angles
Deep reflector
Inside Ring Color: White/Black/ Gun black/ Bright silver /Champaign gold/Rose gold
External flicker-free driver

Light Source:	Bridgelux LED chip
Power:	3W/7W/10W/12W/18W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium
Finishing Color:	White, Black and Gun black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

Die-cast aluminium housing, improve heat dissipation efficiency
High quality chip, energy saving, low heat, low power consumption, long service life, high light efficiency
Deep reflector

Light Source:	Bridgelux LED chip
Power:	9W/15W/20W/25W/30W/40W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°,60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

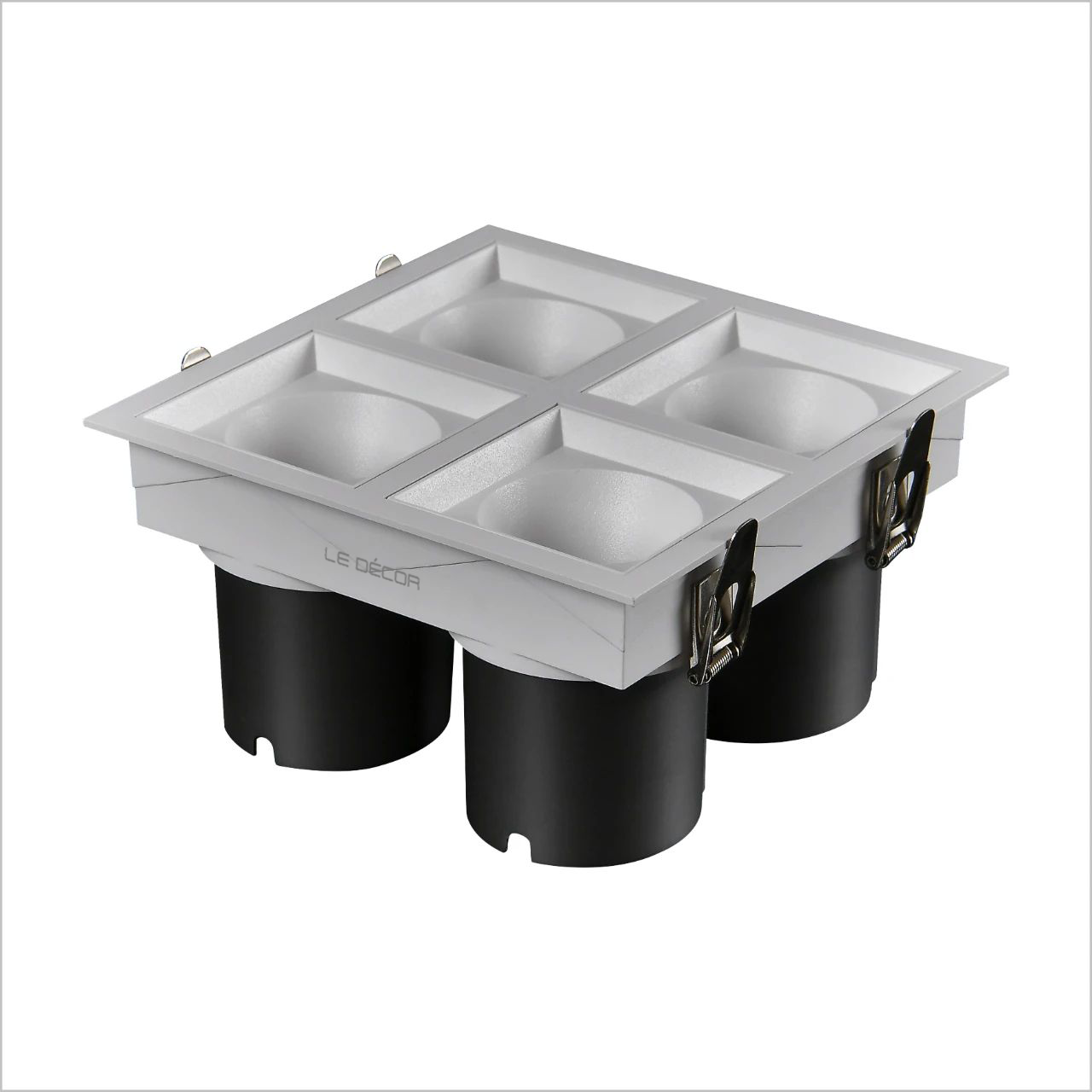

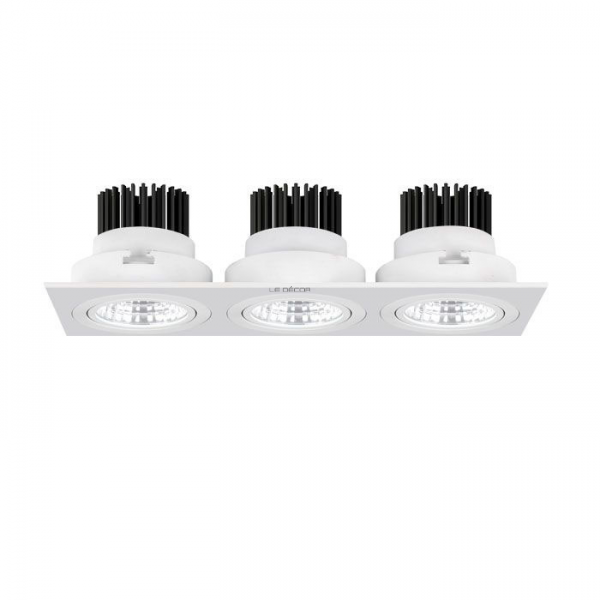

LED Grill Downlight

High quality aluminium housing, better heat dissipation
Adjustable body design
Ease of installation and maintenance
Up to 50000hrs lifespan

Light Source:	Bridgelux LED chip
Power:	12W/15W/2x12W/2x15W/3x12W/3x15W/4x12W/4x15W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,36°,55°
Material:	Die-cast aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

High quality Die-cast aluminium housing, ensure excellent heat dissipation
Multiple beam angle for choice
High quality COB LED Chip
IP20, IP44 for optional

Light Source:	COB LED chip
Power:	9W/12W/15W/20W/25W/30W/35W/40W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium
Finishing Color:	White, Black and Grey
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

High quality Die-cast aluminium housing, ensure excellent heat dissipation
High lumen, high CRI, vivid & uniform lighting effect
Multiple beam angle for choice
High quality COB LED Chip
IP20, IP44 for optional

Light Source:	COB LED chip
Power:	9W/12W/15W/20W/25W/30W/35W/40W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium
Finishing Color:	White, Black and Grey
Driver:	Standard
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

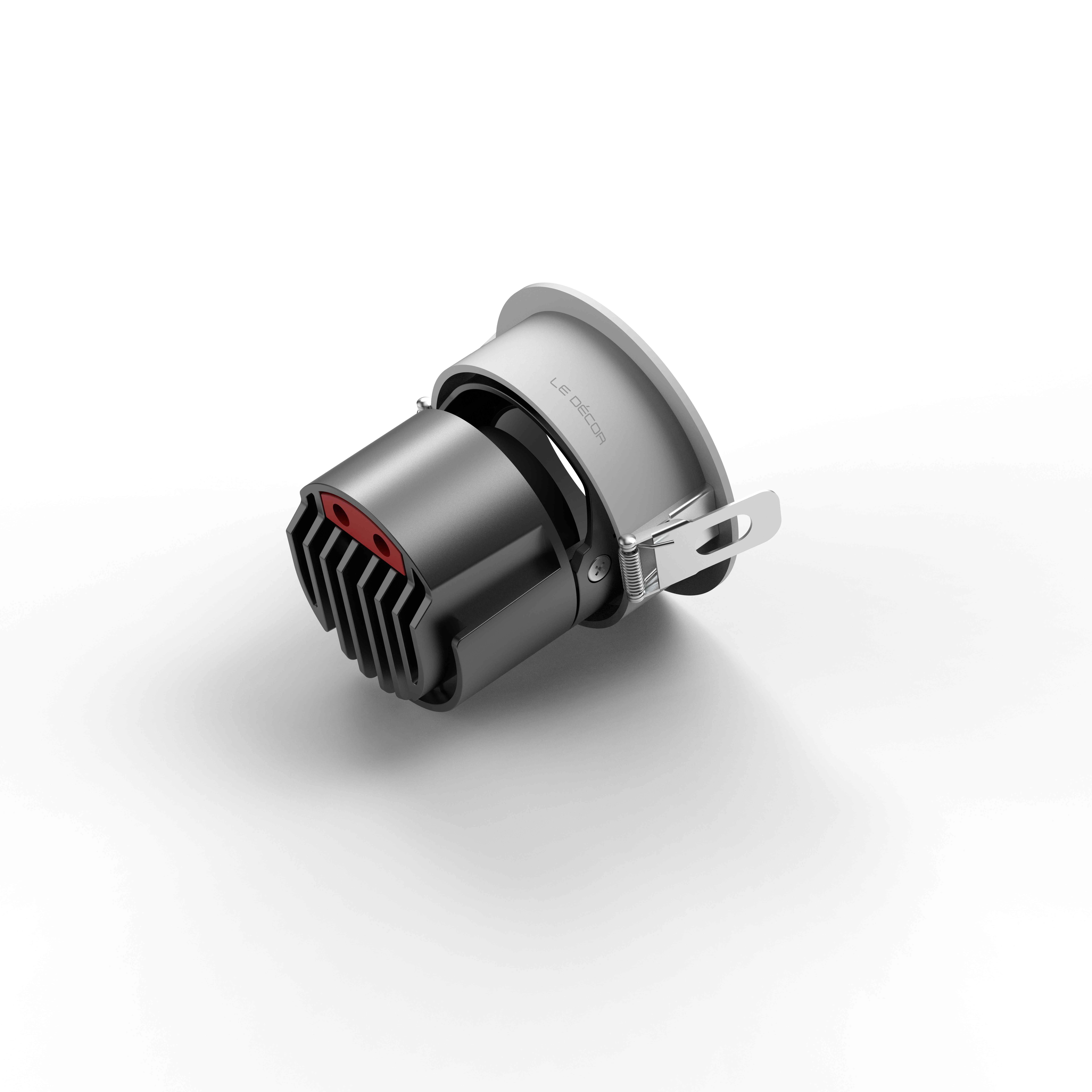

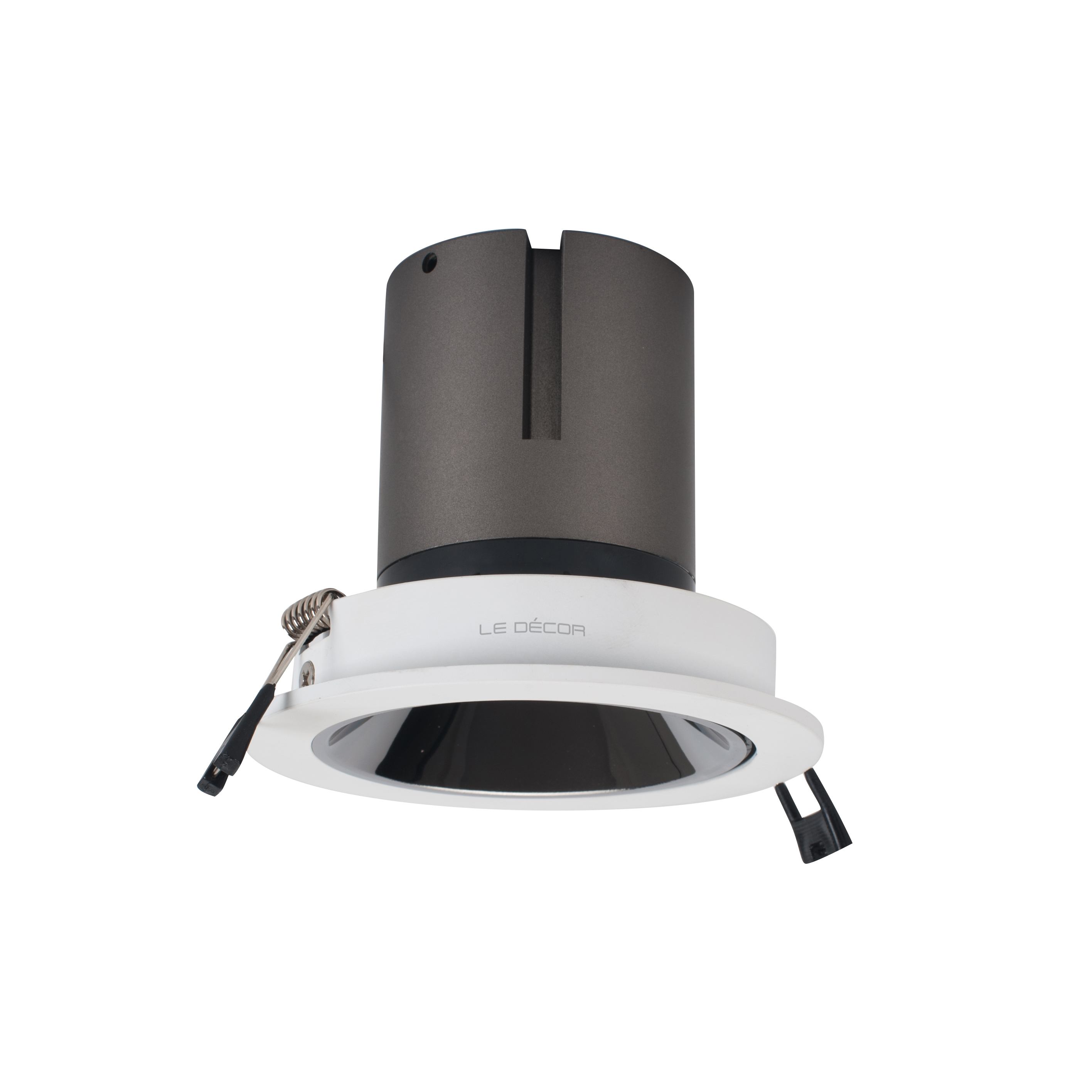

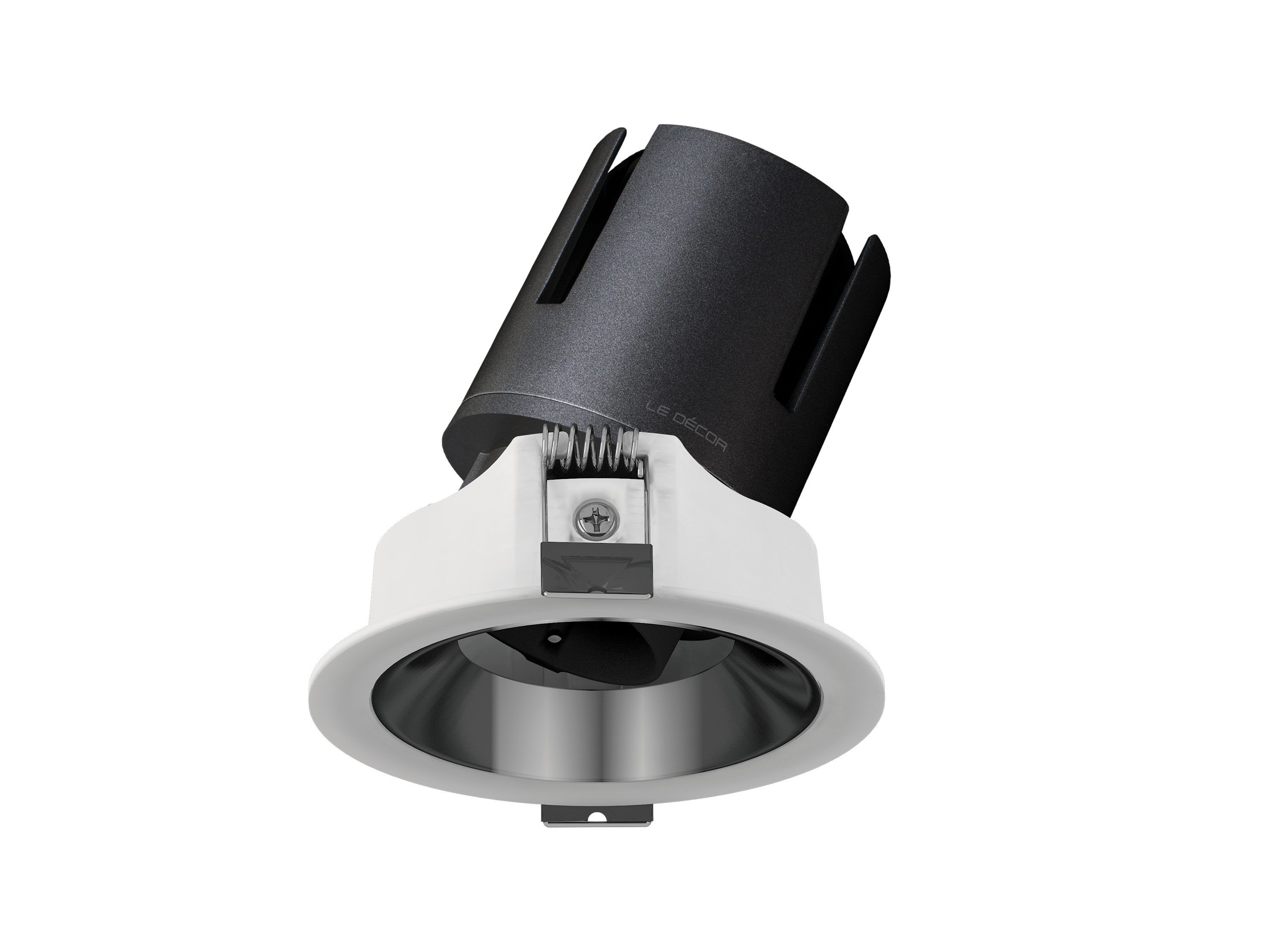

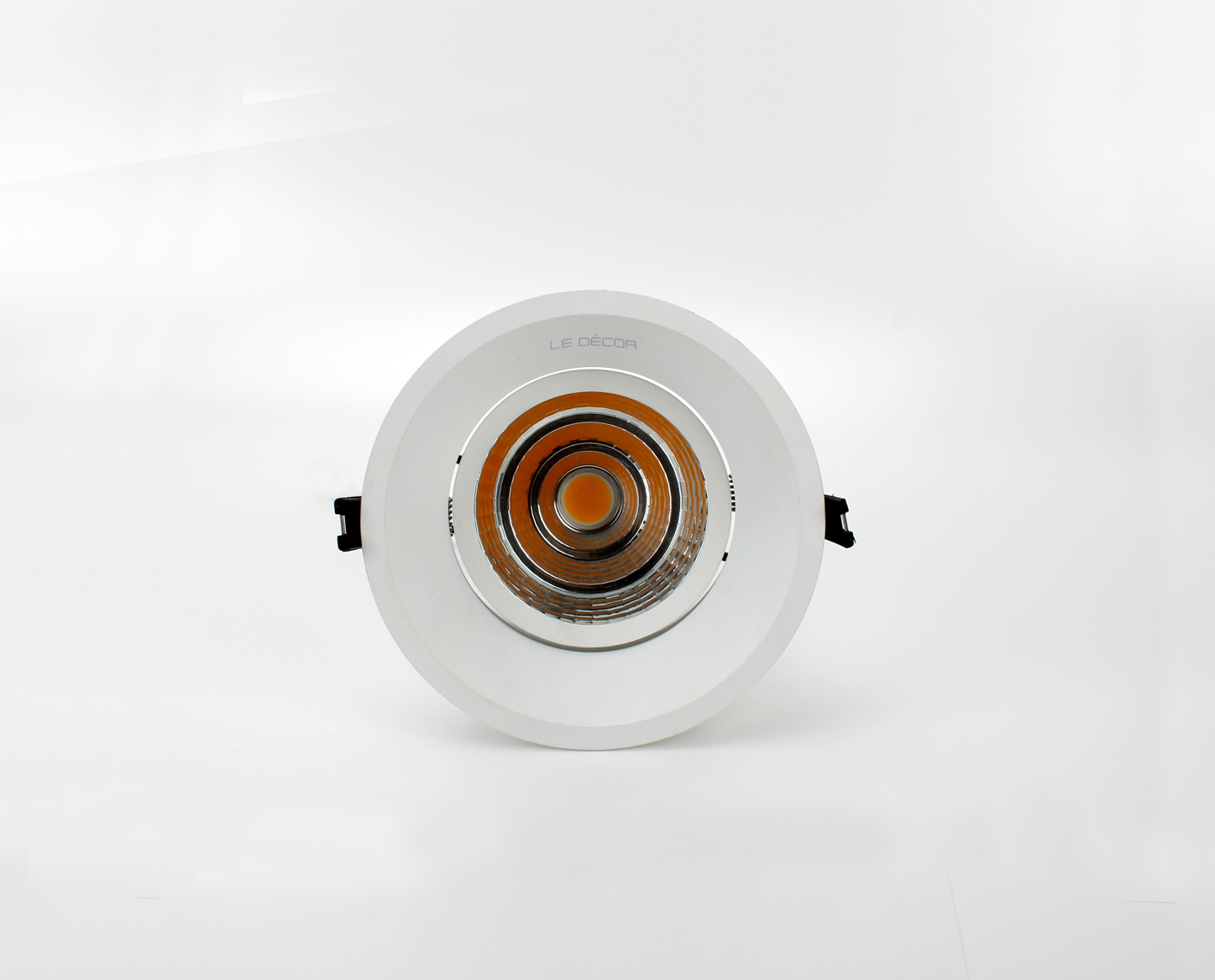

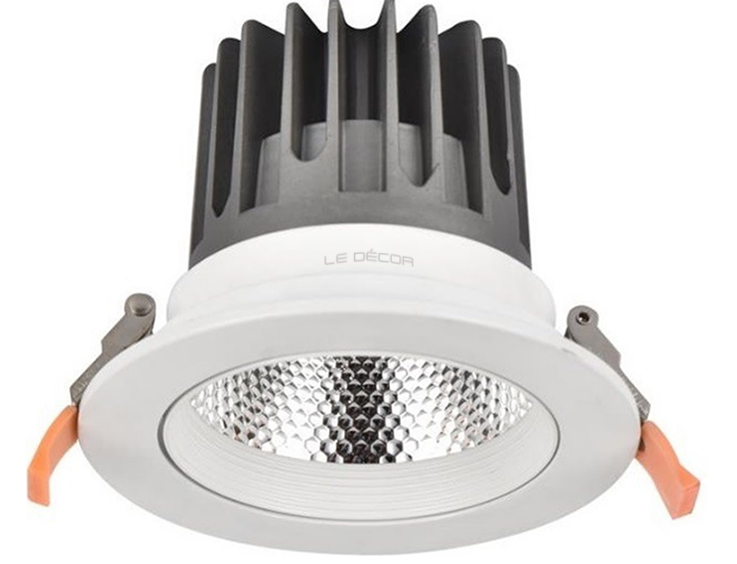

LED Downlight

Aluminium housing offers good heat dissipation so it can ensure a better lifetime
Tiltable design
High lumen efficiency
Environment friendly, without Mercury or any other hazardous substances

Light Source:	SMD LED chip
Power:	6W/9W/12W/15W/20W/30W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°,60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

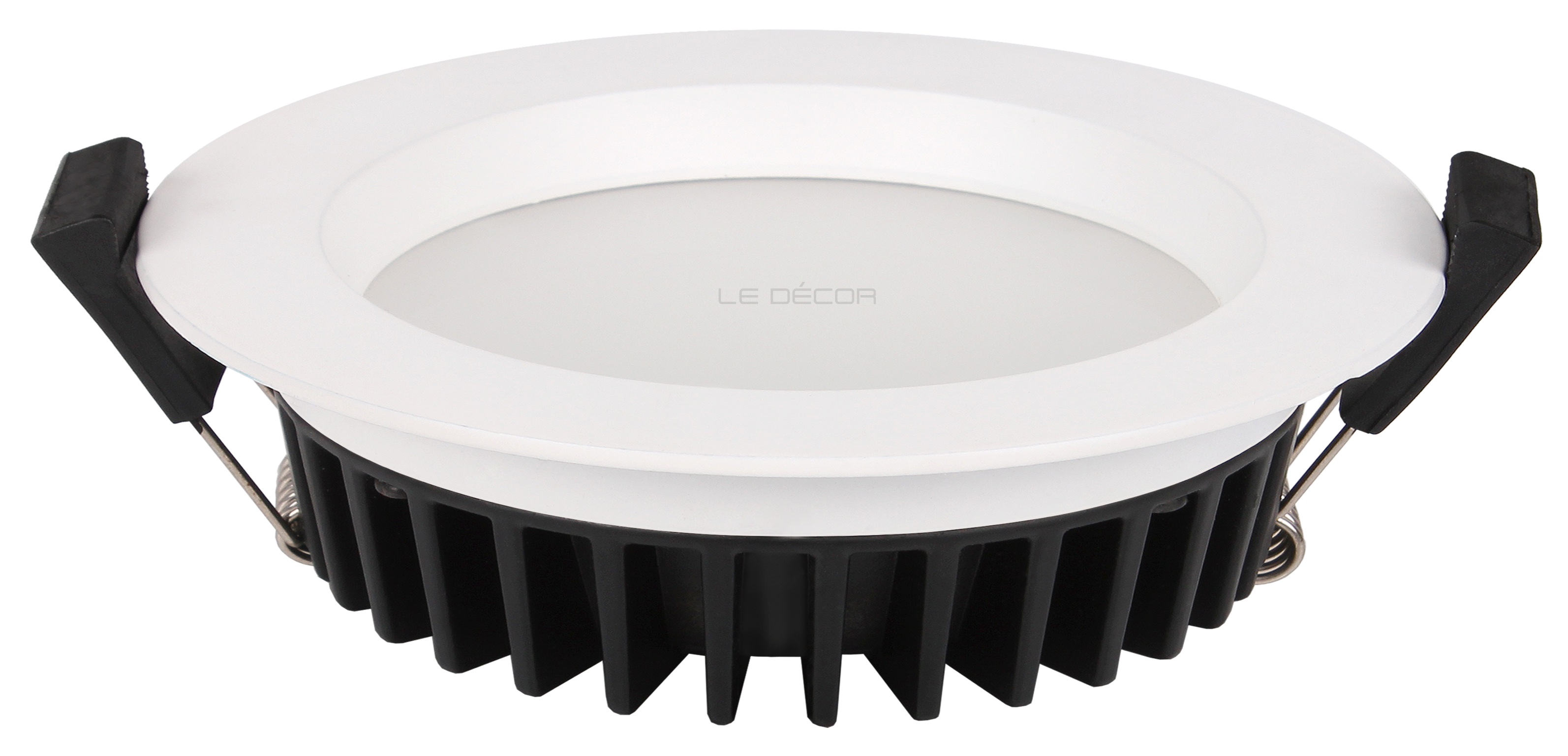

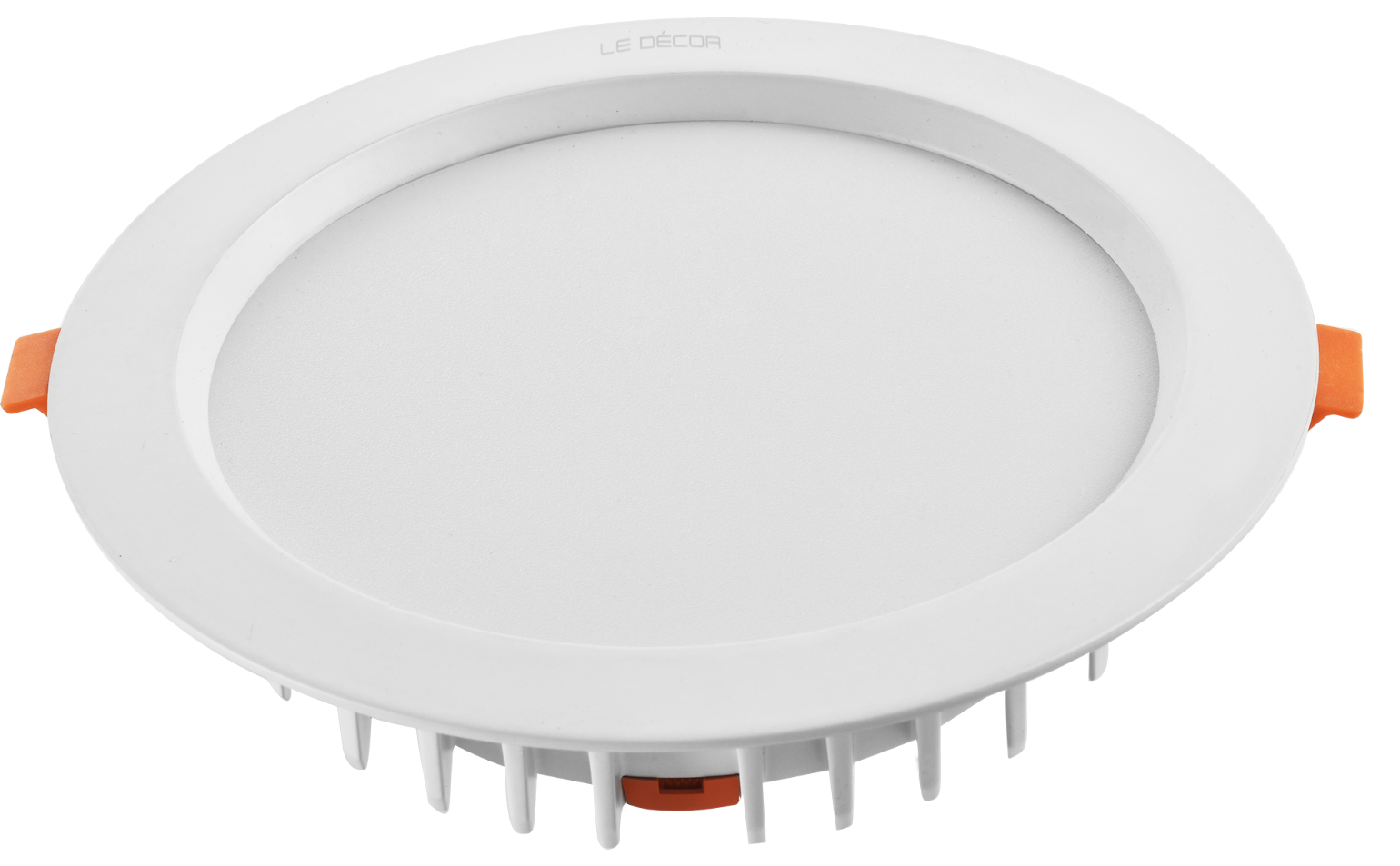

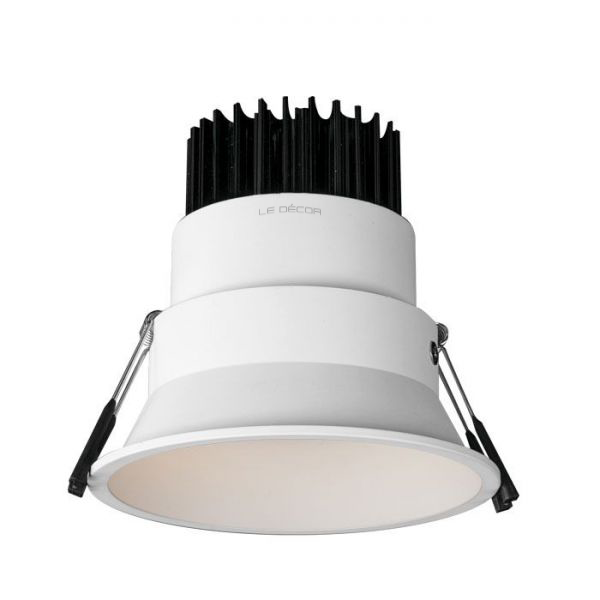

LED Downlight

Aluminium housing material
High quality diffuser ensures high transmittance and even light output
110° beam angle
High quality SMD LED Chip

Light Source:	Epistar SMD LED chip
Power:	8W/12W/15W/20W/24W/30W/40W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	110°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	LIFUD
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

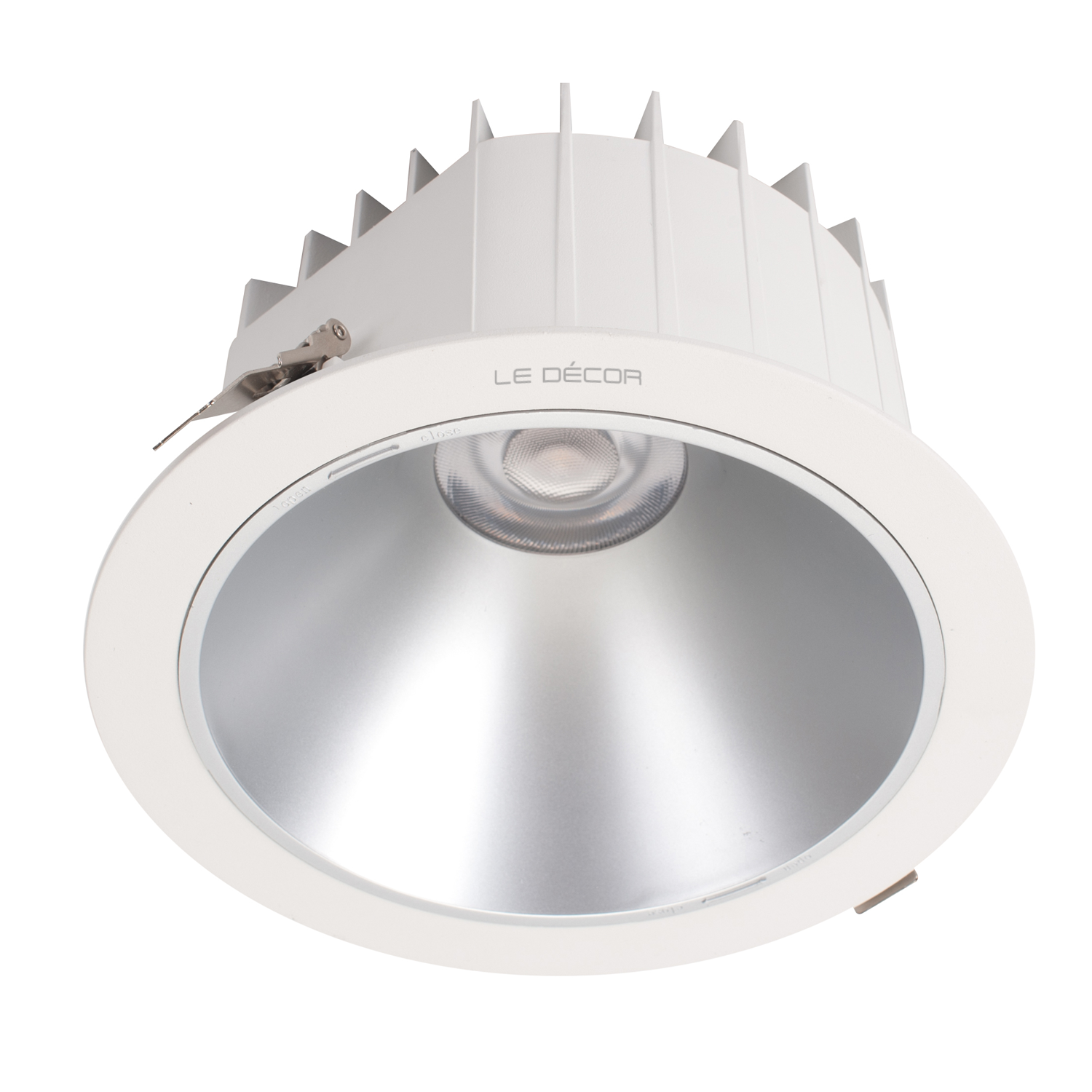

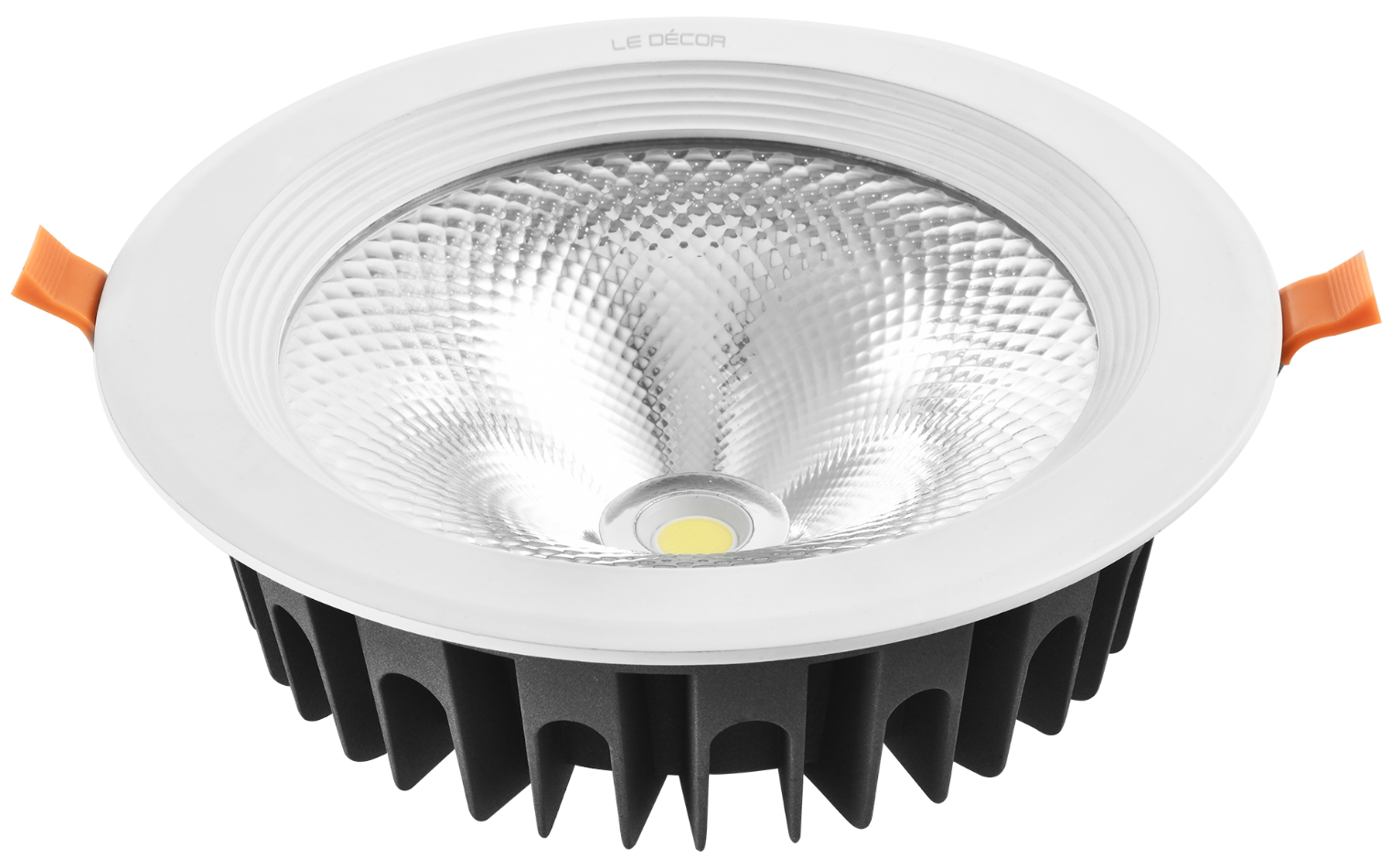

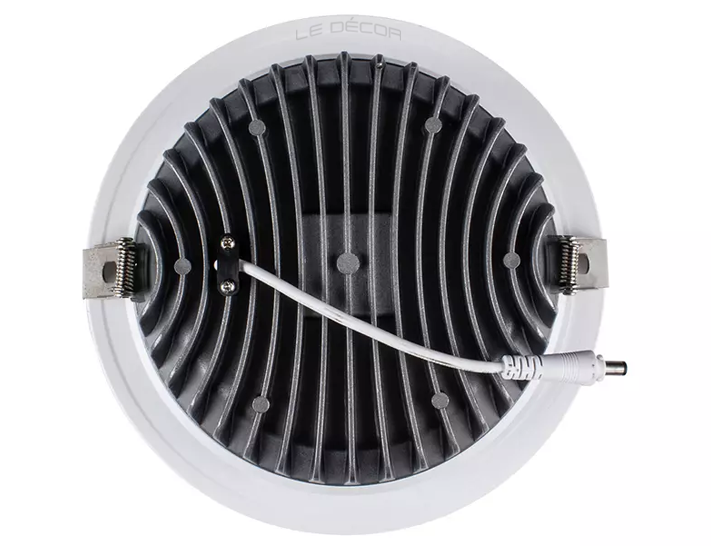

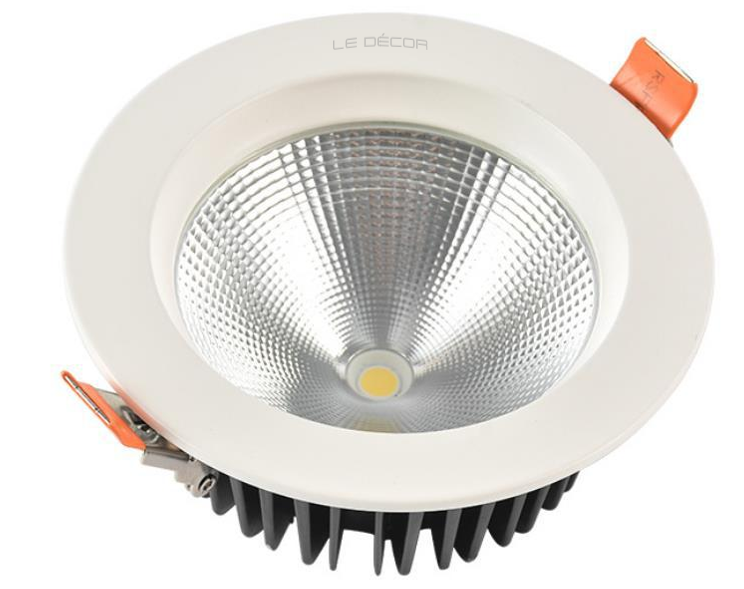

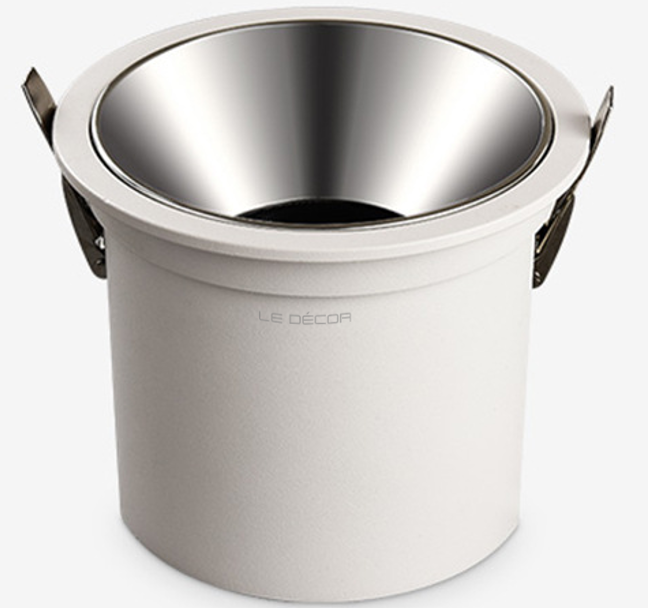

LED Downlight

Deep reflector design, it adopts a high quality COB LED chip
Die-cast aluminum offers great thermal management
Easy installation and maintenance

Light Source:	COB LED chip
Power:	10W/20W/30W/40W
Lumen Efficacy:	80lm/W
CCT:	2700K/3000K/4000K/5000K/5700K
Input Voltage:	AC220-240V
Beam Angle:	30°,45°
Material:	Die-cast aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44/IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

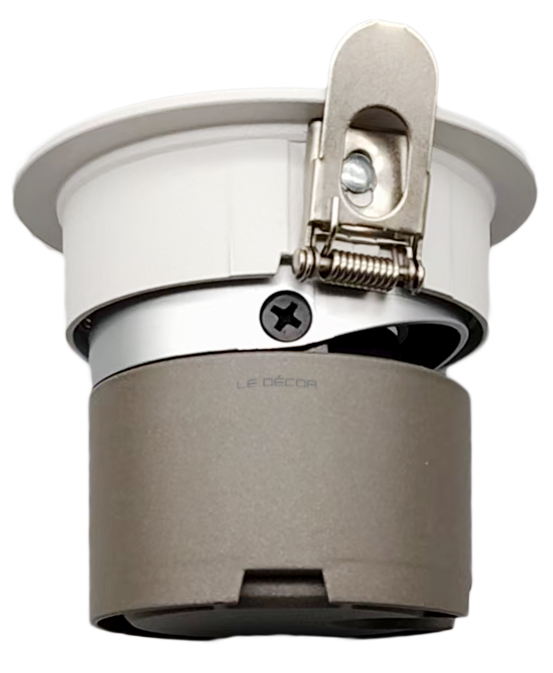

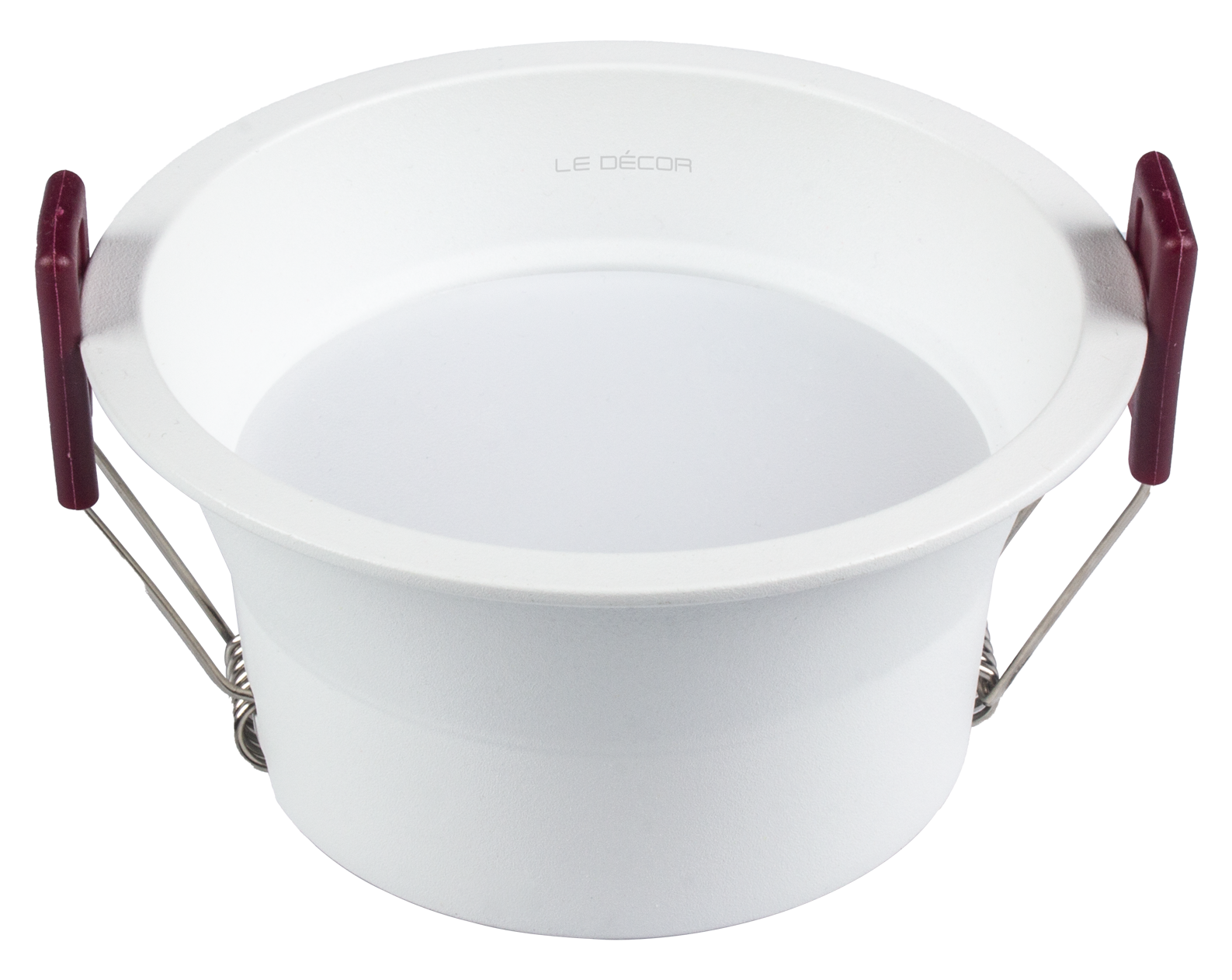

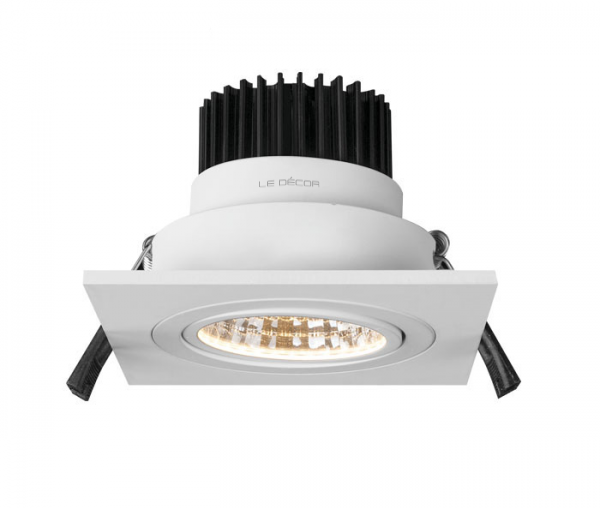

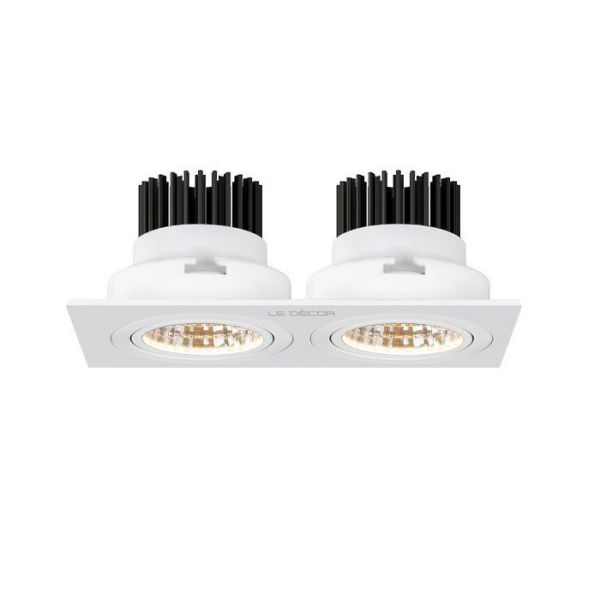

LED Grill Downlight

Aluminium housing offers good heat dissipation so it can ensure a better lifetime
Tiltable design
Adopt high quality COB LED, with high CRI, and high lumen output, which can perfectly present the color of the object
Environment friendly, without Mercury or any other hazardous substances

Light Source:	COB LED chip
Power:	6W/9W/15W/2x9W/3x9W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	15°,24°,38°,60°
Material:	Aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

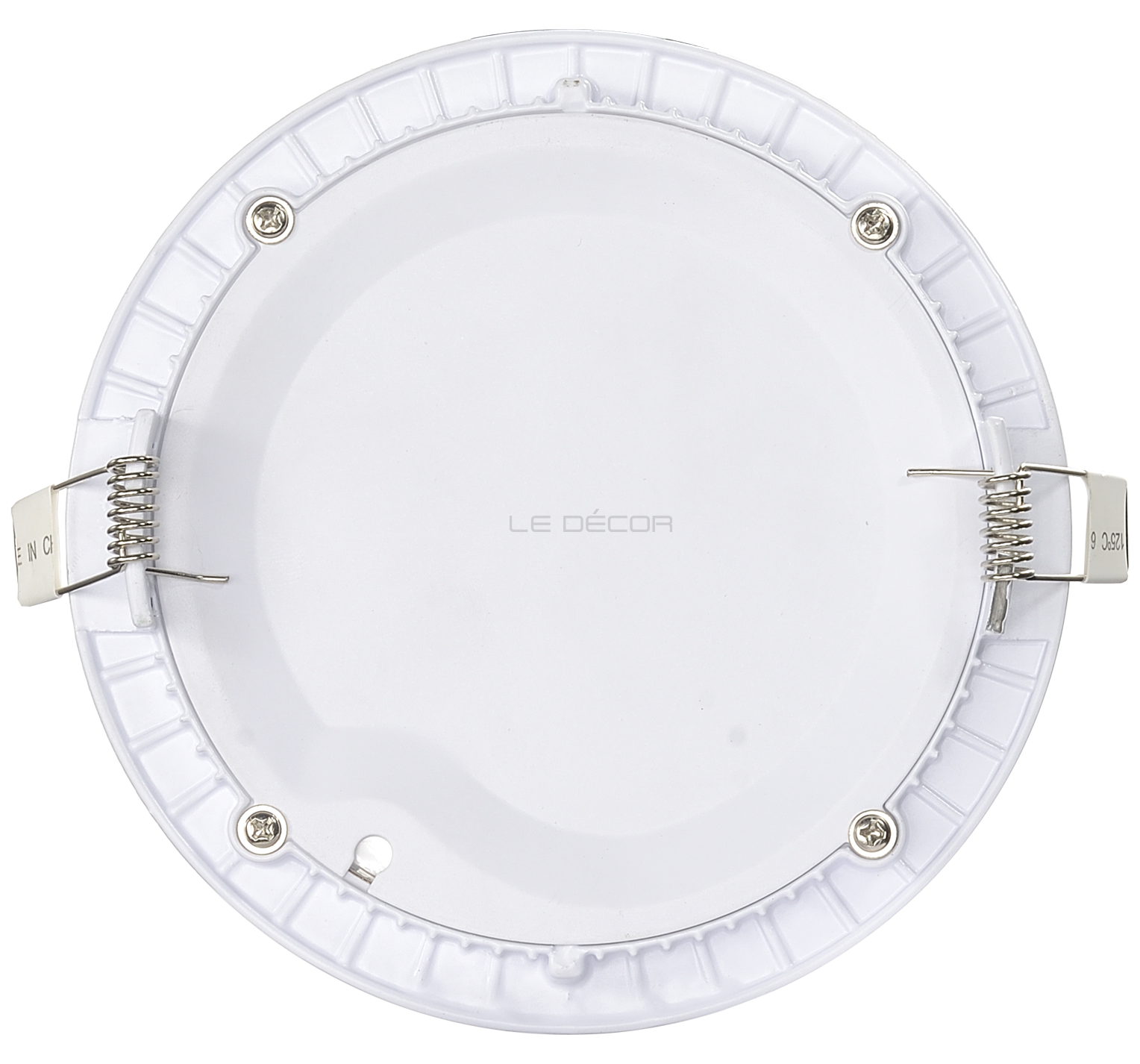

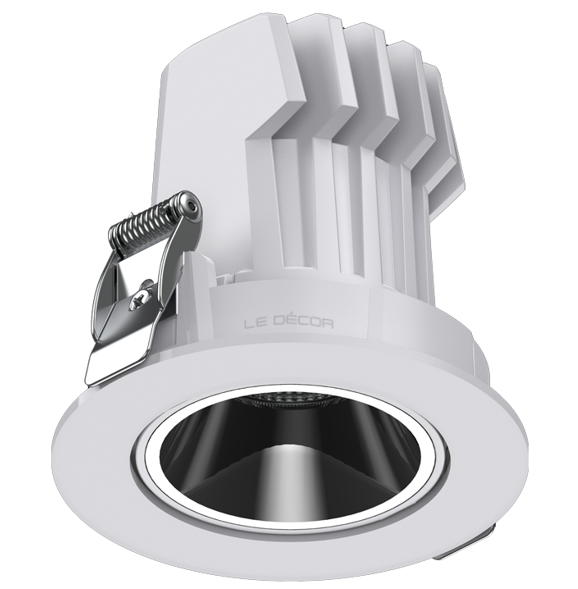

LED Downlight

Quality SMD chip, CRI>80, high luminous efficiency, stable performance to provide uniform & comfortable light layout
External driver
Slim light body for easy installation
120-degree beam angle

Light Source:	SMD LED chip
Power:	3W/4W/6W/9W/12W/15W/18W
Lumen Efficacy:	80lm/W
CCT:	3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	120°
Material:	Aluminium
Finishing Color:	White and Nickel
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

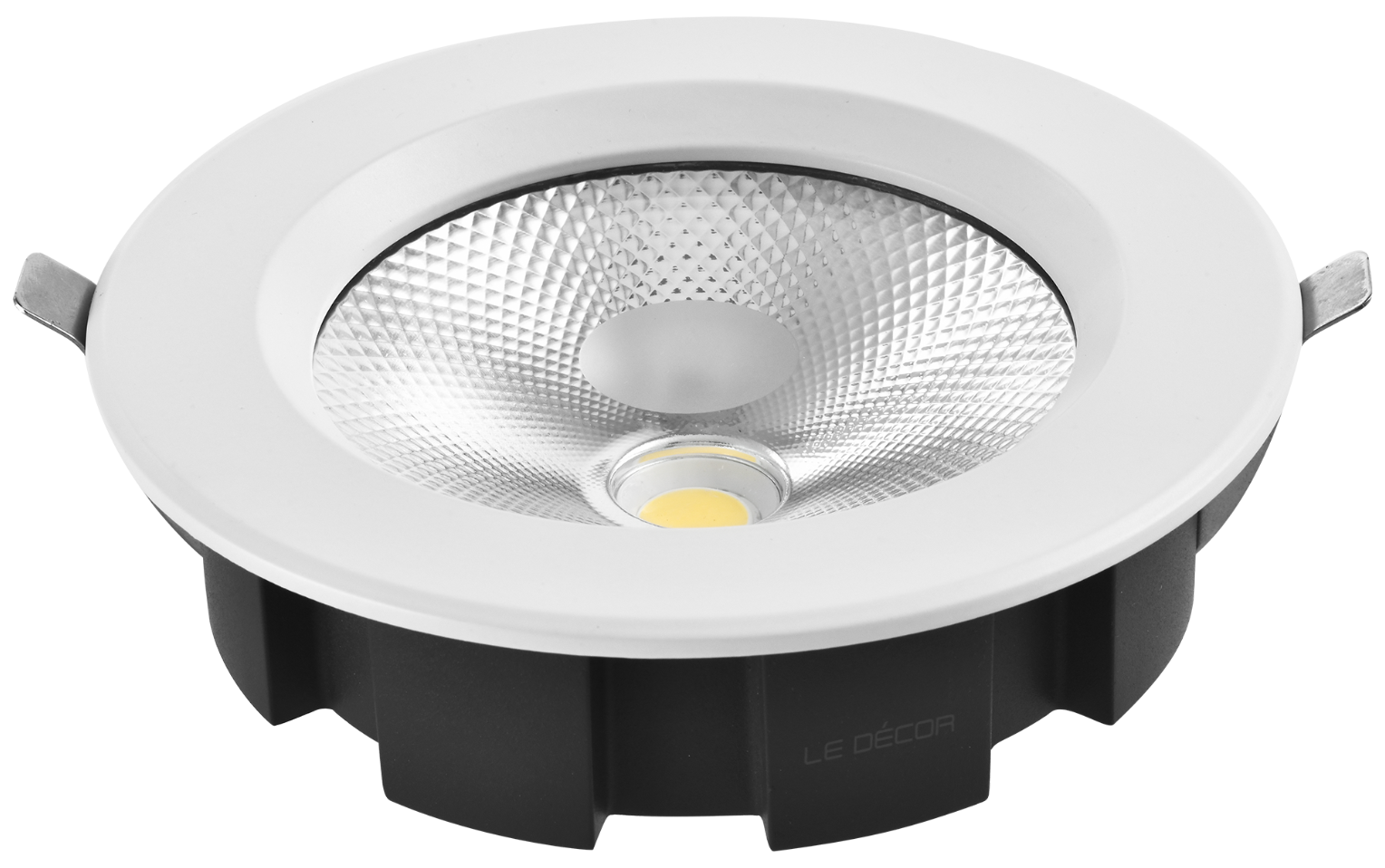

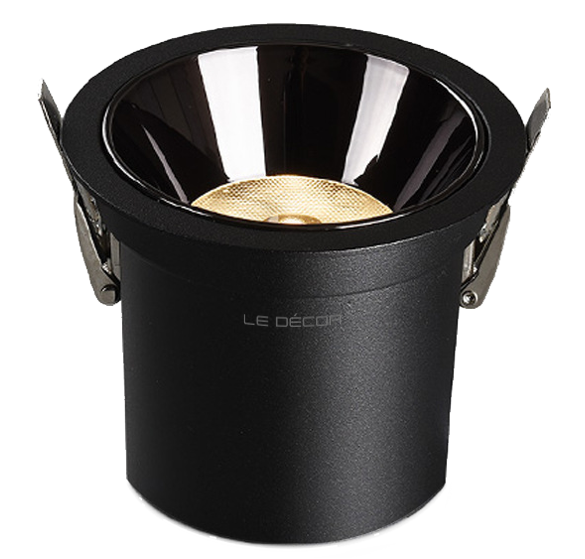

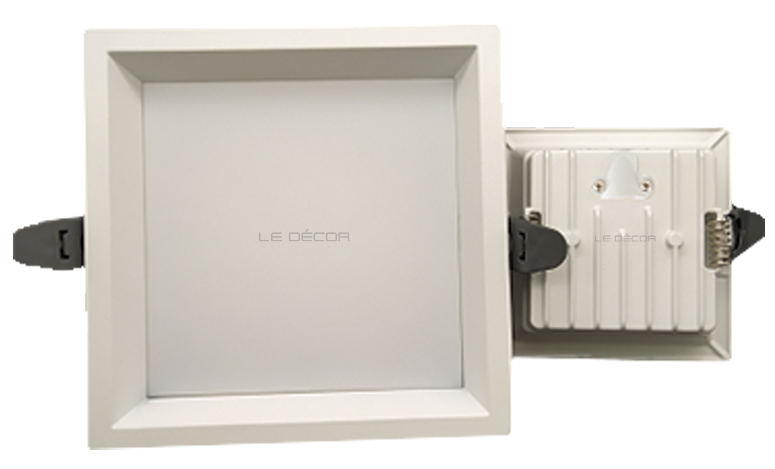

LED Downlight

Adopting high lumen COB LED with uniform light
Different colors & beam angles of reflectors for choice
Die-cast aluminium housing
IP20, IP44 for optional

Light Source:	COB LED chip
Power:	9W/12W/15W
Lumen Efficacy:	75lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC200-240V
Beam Angle:	26°
Material:	Die-cast aluminium
Finishing Color:	White and Black
Driver:	Standard and Dimmable
IP Rating:	IP20/IP44
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

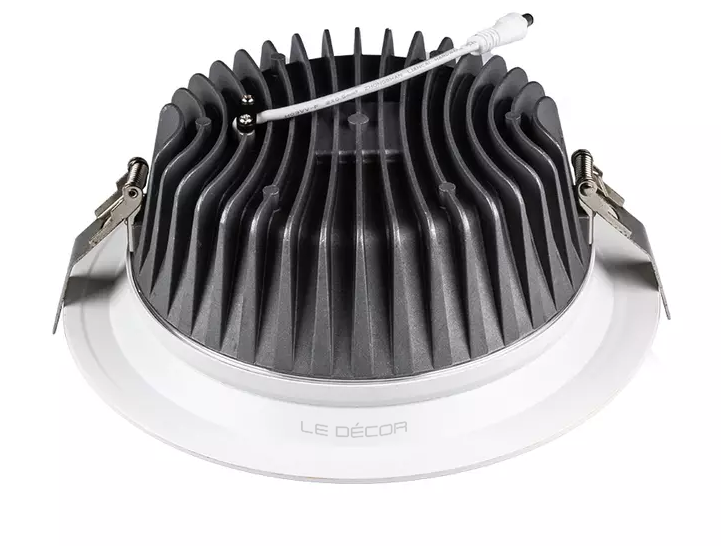

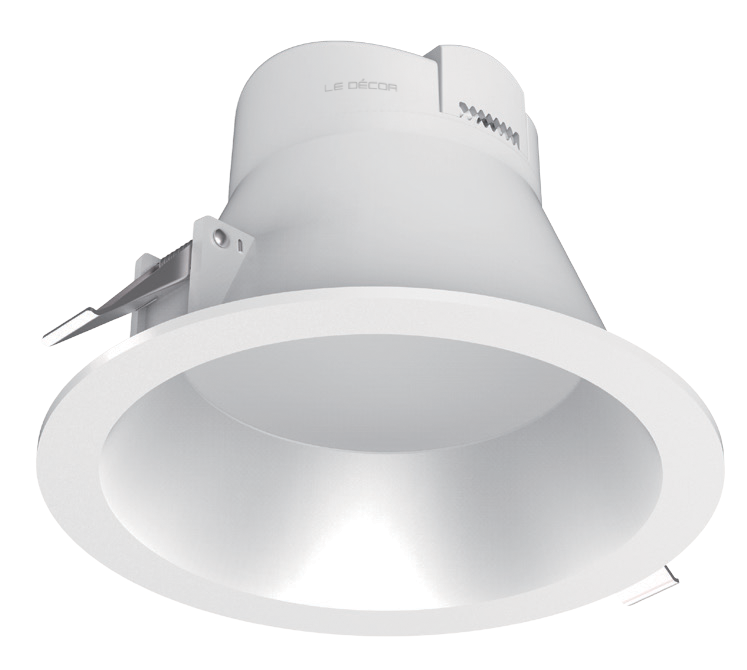

LED Downlight

Die-cast aluminium housing material
High quality diffuser ensures high transmittance and even light output
110° beam angle
High quality SMD LED Chip

Light Source:	SMD LED chip
Power:	9W/12W/15W/20W/24W/30W/35W/40W/45W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/5000K/6000K
Input Voltage:	AC220-240V
Beam Angle:	110°
Material:	Die-cast aluminium
Finishing Color:	White
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

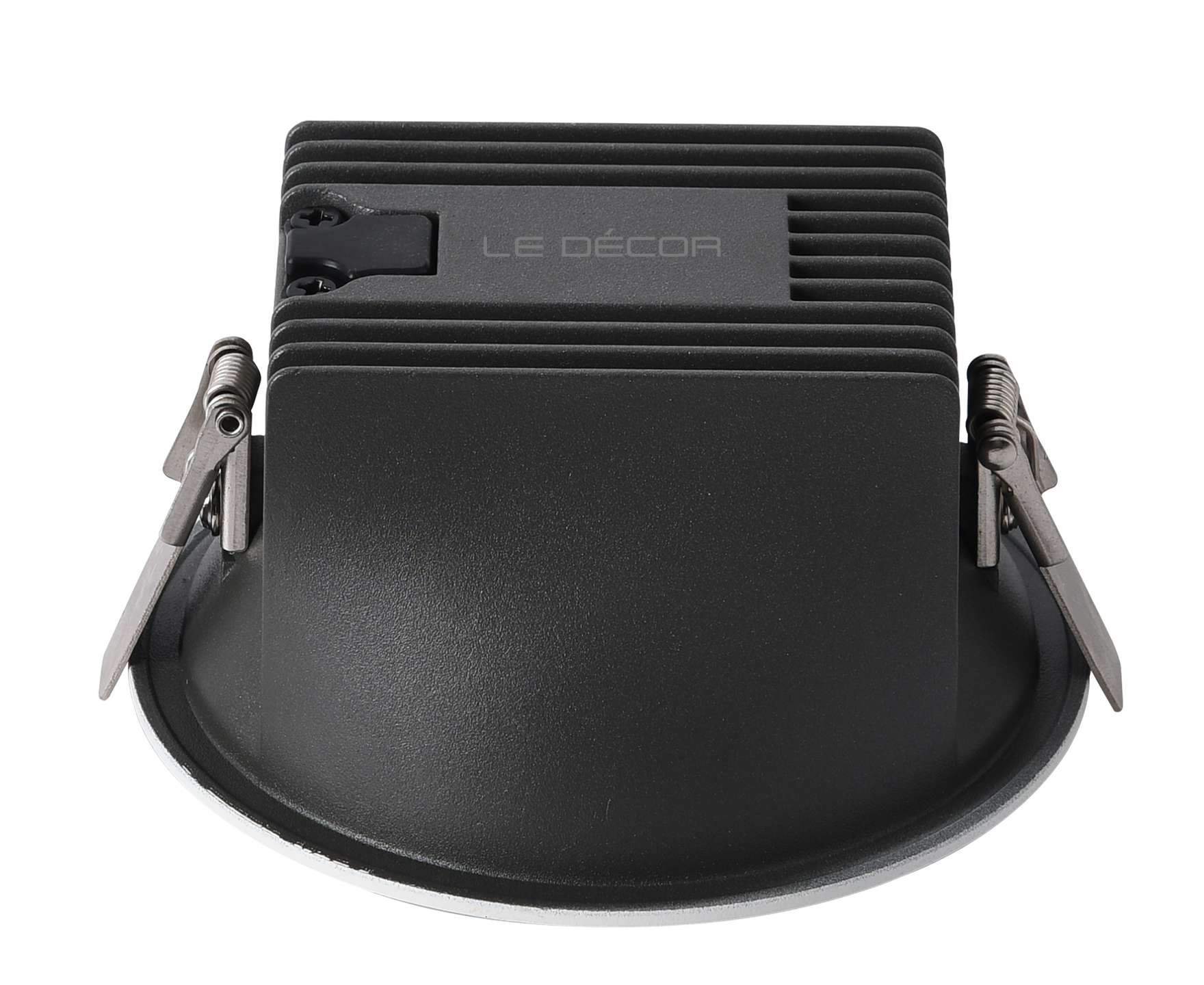

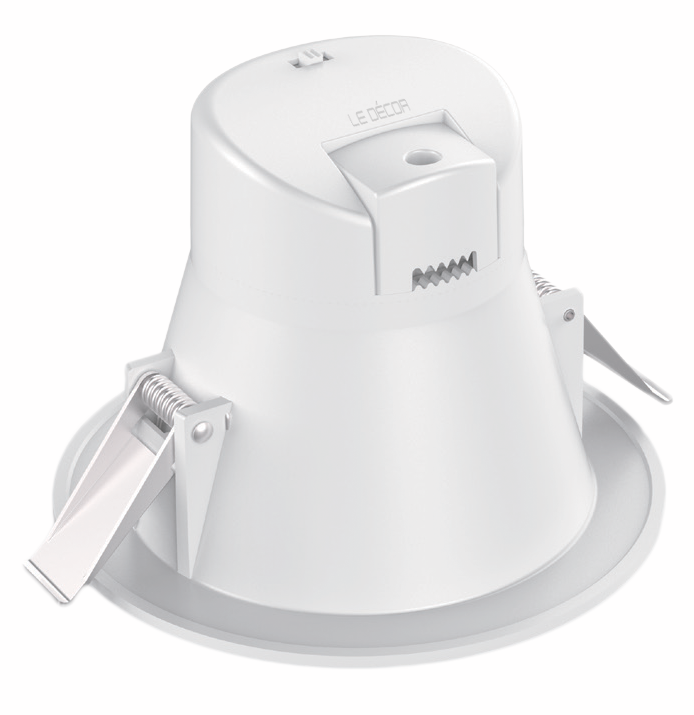

LED Downlight

Plastic coated aluminium housing and PC diffuser with internal driver design
IP20/IP54 waterproof optional
High lumen light efficacy above 100lm/w
CCT switchable available
No UV/IR light and Environment friendly

Light Source:	SMD LED chip
Power:	8w
Lumen Efficacy:	100lm/W
CCT:	3000K/4000K/5000K/5700K/C3
Input Voltage:	AC200-240V
Beam Angle:	100°
Material:	PA46
Finishing Color:	White RAL 9016
Driver:	Built-in
IP Rating:	IP20/ IP54
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

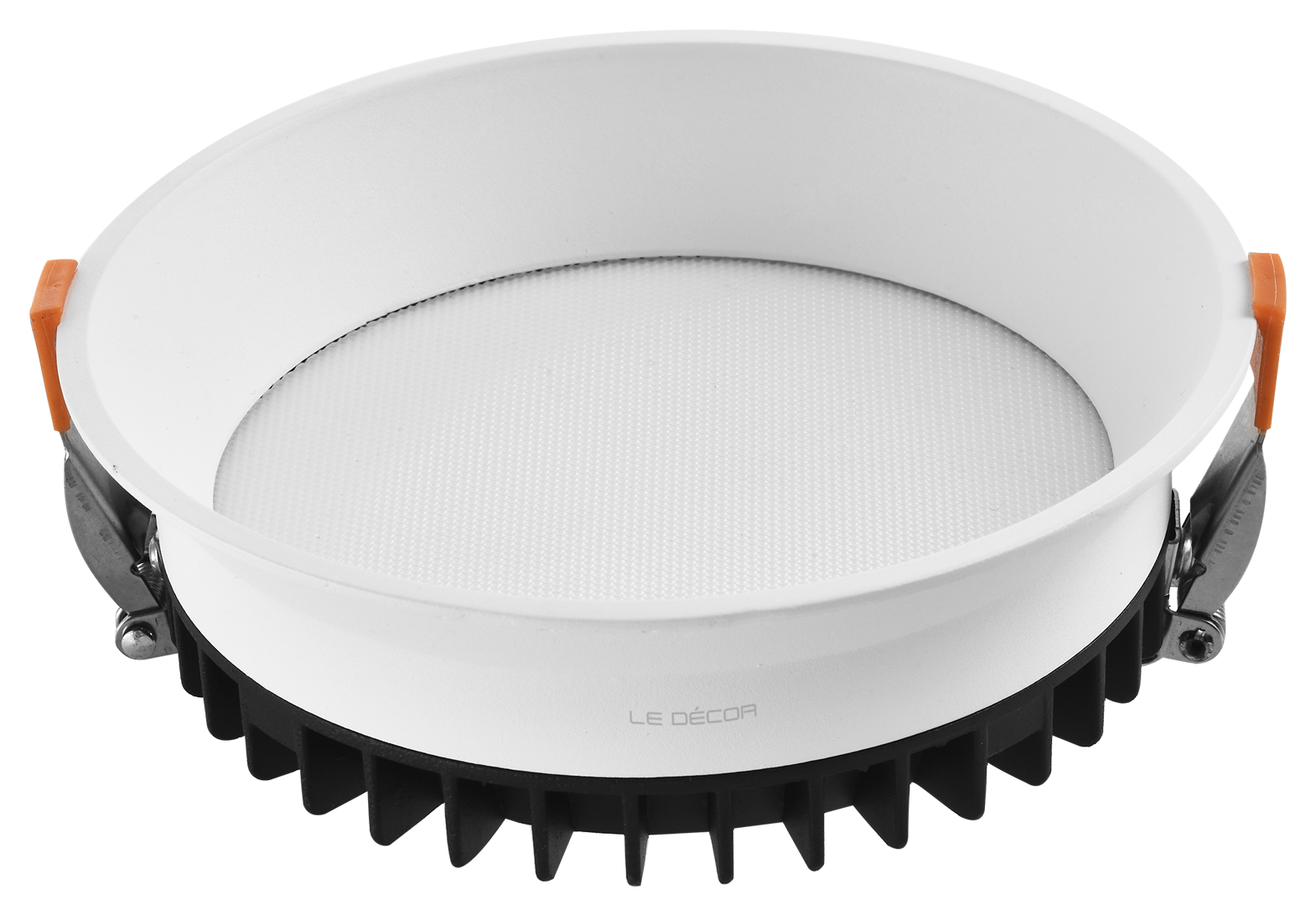

LED Downlight

Plastic coated aluminium housing and PC diffuser with even light output
Featuring plastic coated aluminium housing has been deepened to reduce the glare
IP54 waterproof
High lumen light efficacy of 90-110lm/w
CCT switchable available
No UV/IR light and Environment friendly

Light Source:	SMD LED chip
Power:	10W/13W/16W/20W
Lumen Efficacy:	90lm/W/110lm/W
CCT:	3000K/4000K/5000K/5700K/C3
Input Voltage:	AC100-240V
Beam Angle:	90°
Material:	Plastic coated aluminium
Finishing Color:	White
Driver:	BUILT-IN
IP Rating:	IP54
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

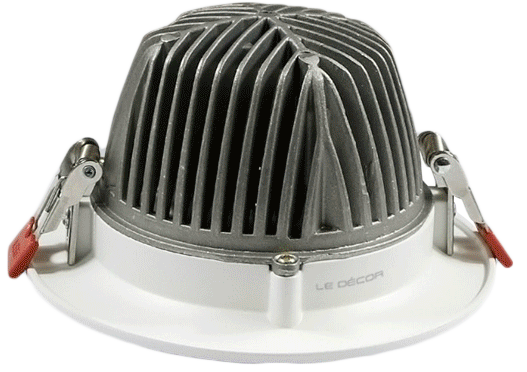

LED Downlight

The light body is made of die-cast aluminium, which is water-proof and corrosion resistant
Enabling more efficient heat dissipation earning a longer lifespan
Anti-rust installation clips
High quality LED chip
IP65 weather protection

Light Source:	Bridgelux COB LED chip
Power:	10W/20W/30W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	15°/24°/38°
Material:	Die-cast aluminium housing
Finishing Color:	White
Driver:	Standard
IP Rating:	IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium
Enabling more efficient heat dissipation earning a longer lifespan
Anti-rust installation clips
High quality LED chip

Light Source:	Bridgelux COB LED chip
Power:	7W/12W/15W/24W/30W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium housing
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium
High quality LED chip
Optical lens is new PC material, corrosion resistance, high light transmission
High quality die-cast aluminium radiator to help more efficient heat dissipation

Light Source:	Bridgelux COB LED chip
Power:	7W/12W/20W/30W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium housing
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium and PC, which is water-proof and corrosion resistant
Enabling more efficient heat dissipation earning a longer lifespan
High strength clips for stable installation
High quality LED chip and driver
IP65 weather protection

Light Source:	Epistar SMD/ Bridgelux COB LED chip
Power:	7W/15W/20W/30W/40W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	AC185-265V
Material:	Die-cast aluminium housing
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20,IP44,IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium, which is water-proof and corrosion resistant
Enabling more efficient heat dissipation earning a longer lifespan
Anti-rust installation clips
High quality LED chip
IP65 weather protection

Light Source:	Bridgelux COB LED chip
Power:	7W/18W/24W/30W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	24°,36°
Material:	Die-cast aluminium housing
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20,IP44,IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium
High Lumen, high conversion rate
Enabling more efficient heat dissipation earning a longer lifespan.
Anti-rust installation clips
High quality LED chip

Light Source:	Bridgelux COB LED chip
Power:	7W/12W/24W/36W/48W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	24°,38°
Material:	Die-cast aluminium
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44/IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium, which is water-proof and corrosion resistant
Enabling more efficient heat dissipation earning a longer lifespan
Anti-rust installation clips
High quality LED chip
IP65 weather protection

Light Source:	Bridgelux COB LED chip
Power:	7W/12W/20W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	15°,24°,38°
Material:	Die-cast aluminium housing
Finishing Color:	White and Black
Driver:	Standard
IP Rating:	IP20/IP44/IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

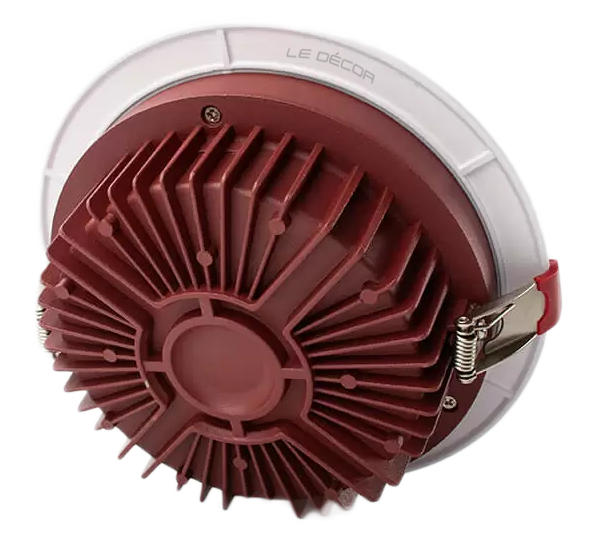

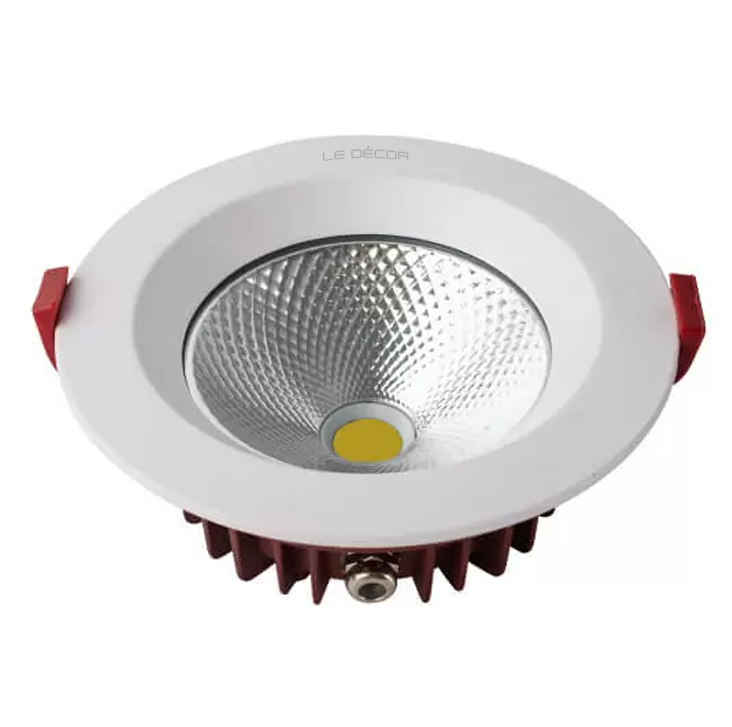

LED Downlight

The light body is made of die-cast aluminium
High quality LED chip and excellent efficiency
Anti-rest installation clips
High quality die-cast aluminium radiator to help more efficient heat dissipation
IP65 water resistance

Light Source:	Bridgelux COB LED chip
Power:	7W/12W/18W/25W/30W/40W
Lumen Efficacy:	90lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC185-265V
Beam Angle:	24°/36°/60°/90°
Material:	Die-cast aluminium housing
Finishing Color:	White and Red
Driver:	Standard
IP Rating:	IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.

LED Downlight

The light body is made of die-cast aluminium, which is water-proof and corrosion resistant
Enabling more efficient heat dissipation earning a longer lifespan
High strength clips for stable installation
High quality LED chip
IP65 weather protection

Light Source:	Epistar SMD LED chip
Power:	7W/18W/24W/30W
Lumen Efficacy:	100lm/W
CCT:	2700K/3000K/4000K/6000K
Input Voltage:	AC85-265V
Beam Angle:	120°
Material:	Die-cast aluminium
Finishing Color:	White
Driver:	Standard
IP Rating:	IP20,IP44,IP65
Mounting:	Recessed
Lifespan:	50000hrs

Foot note: For a detailed data sheet, contact the manufacturer.
