LED Linear Light Products
LED Linear Light
LED Linear Light
- Suspended, surface and recessed mounting options
- High lumen light efficacy of 130 lm/w
- Switchable CCT option available

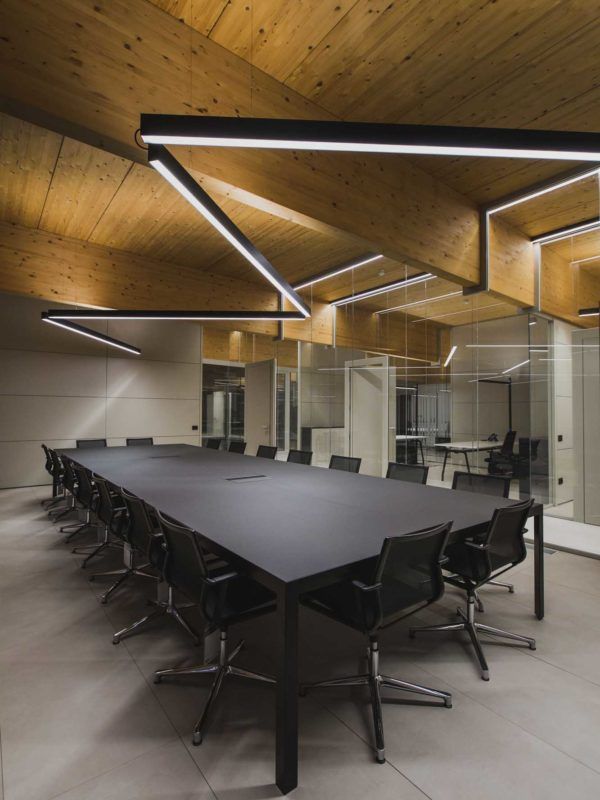

- With Straight shape/’L’ shape/’+’ shape/’T’ shape connectors
- Length can be customized
- Opal, Prismatic, Honey comb, Grille diffuser options
| Light Source: | EPISTAR LED chip |
| Power: | 20W/30W/40W/60W/80W/100W/120W |
| Lumen Efficacy: | 130lm/W |
| CCT: | 2700K/3000K/4000K/5000K/6500K/C4 |
| Input Voltage: | AC180-264V |
| Beam Angle: | 60°/75°/95°/115°/DA30 |
| Material: | Aluminium |
| Finishing Color: | White, Black, Grey |
| Driver: | BOKE |
| IP Rating: | IP20 |
| Mounting: | Hanging & Ceiling & Embedded |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.

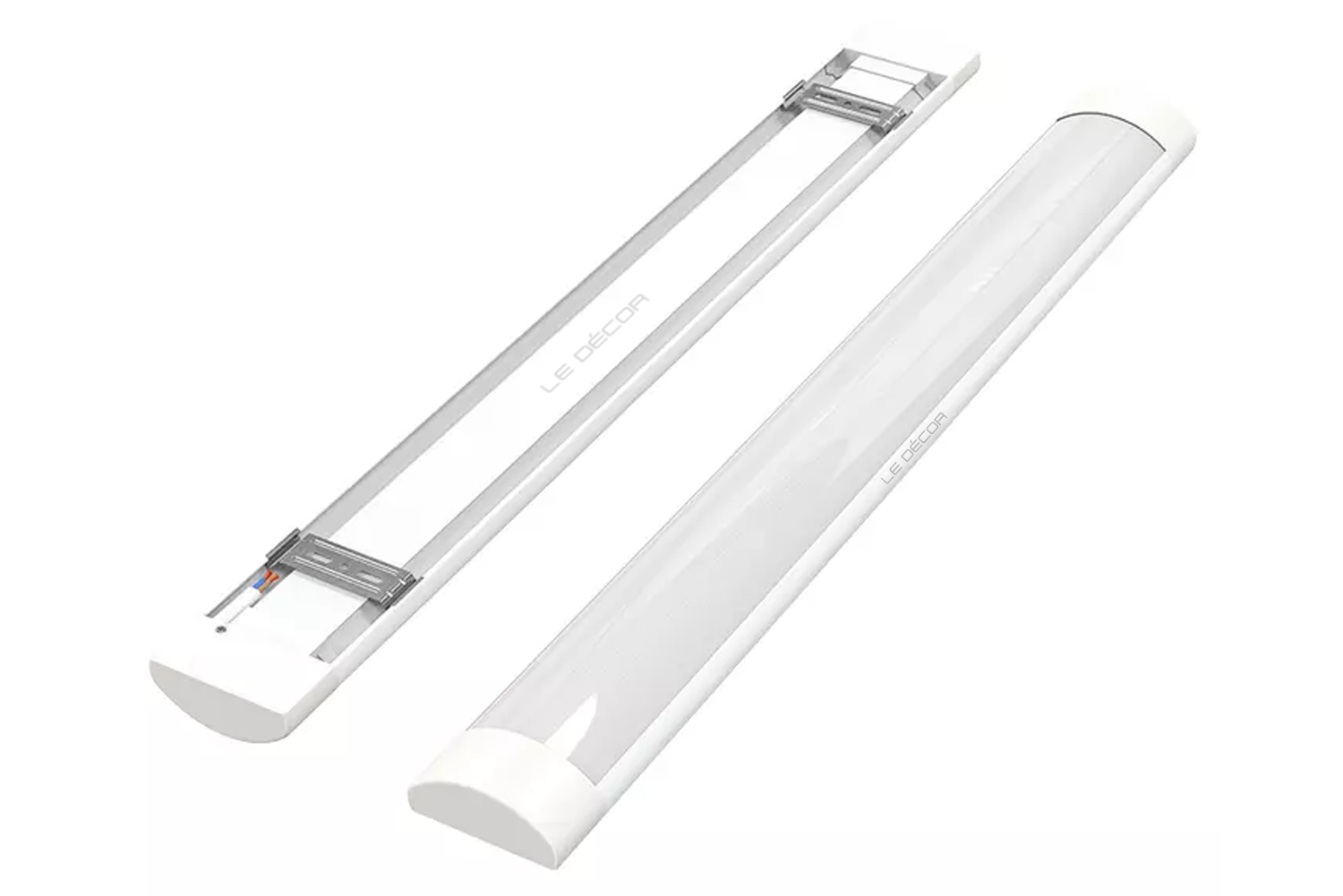

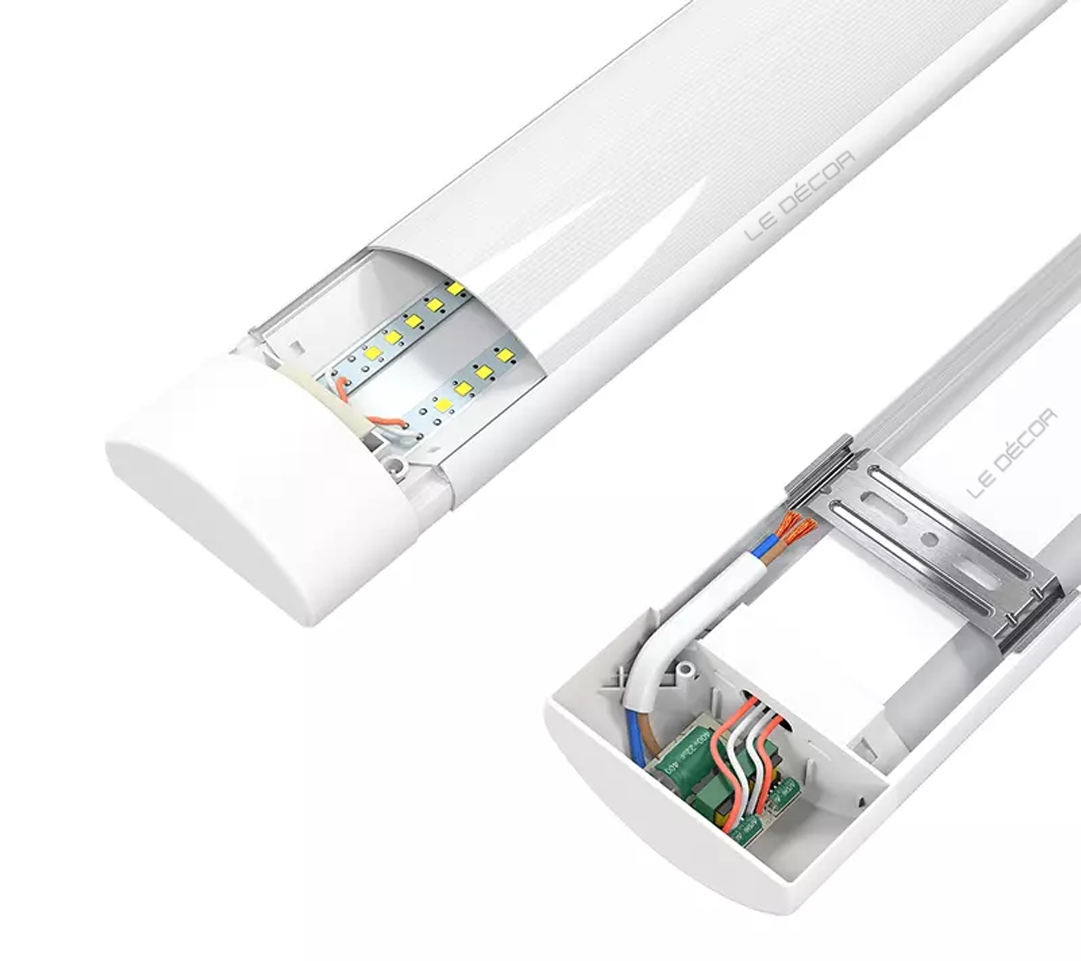

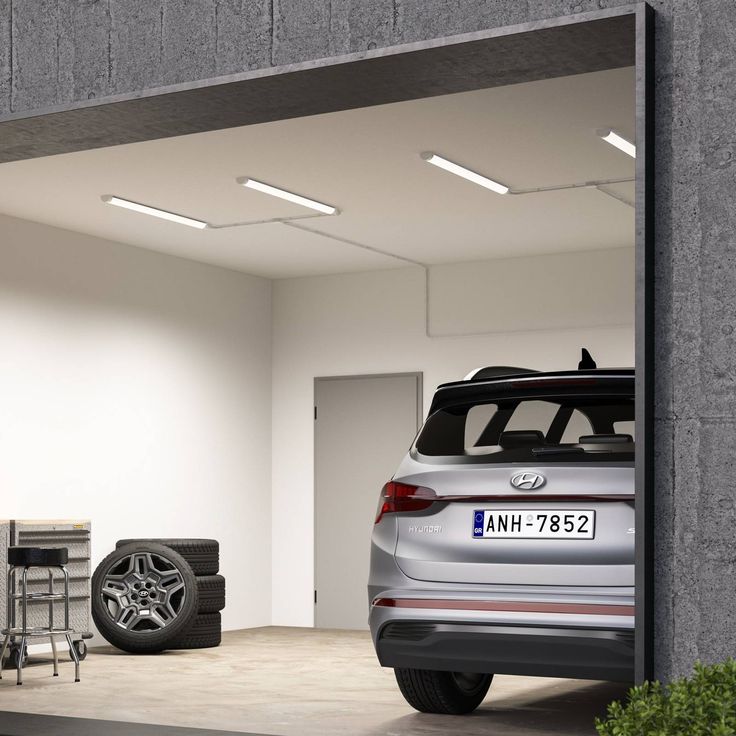

LED Linear Batten Light
LED Linear Batten Light
- IP44 waterproof
- Anti yellowing PC / PS cover
- Excellent light distribution and uniformity
- Ensure lifespan with aluminum heat dissipation system
- Flicker-free internal driver
| Light Source: | SMD LED |
| Power: | 15W/20W/36W/50W |
| Lumen Efficacy: | 150lm/W |
| CCT: | 2700K/4000K/5000K/6500K |
| Input Voltage: | AC200-240V |
| Beam Angle: | 120° |
| Material: | Die-cast aluminium+ PC |
| Finishing Color: | White |
| Driver: | Standard |
| IP Rating: | IP44 |
| Mounting: | Surface Mounted |
| Lifespan: | 50000hrs |
Foot note: For a detailed data sheet, contact the manufacturer.
